IPC Tester NEW release 8 inch 8K H.265 IP, 8MP AHD/TVI/CVI CCTV Camera Tester support POE++, SFP module

$ 879.00 inc GST

Category: SKU: 1005009233199930

Description

  • Brand Name : TahLiTech
  • Lens : 3.6mm
  • Origin : Mainland China
  • Hign-concerned Chemical : None
  • Sensor Size : 1/4 inch
  • Maximum IR Distancem : 40m
  • Model Number : H12 series
  • Certification : CE
  • Certification : FCC
  • Certification : RoHS
  • Plug Type : US Plug


NEW release 8 inch 8K H.265 IP, 8MP AHD/TVI/CVI CCTV Camera Tester support POE++, SFP module

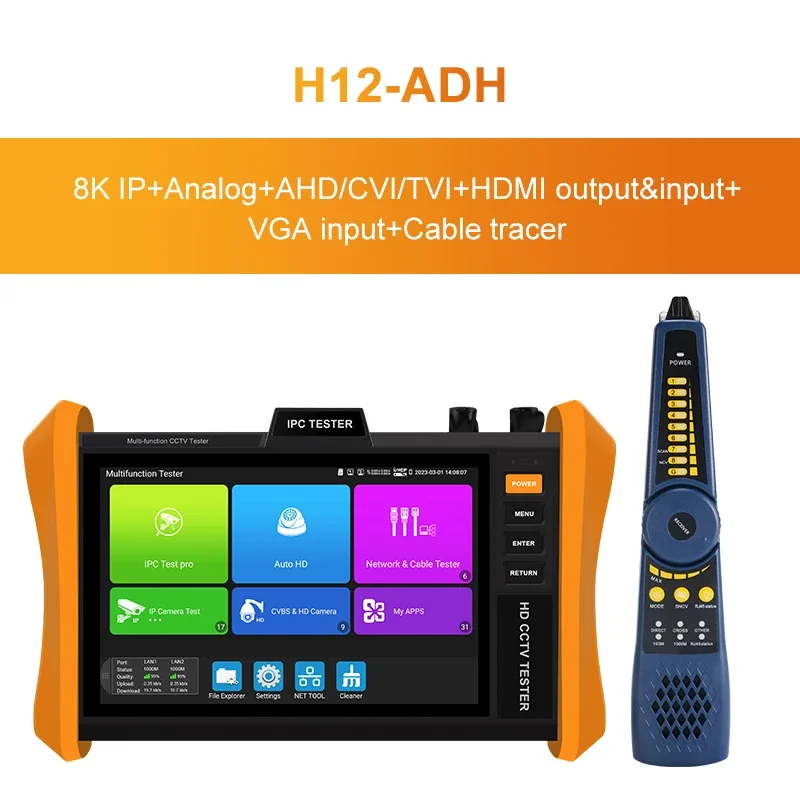

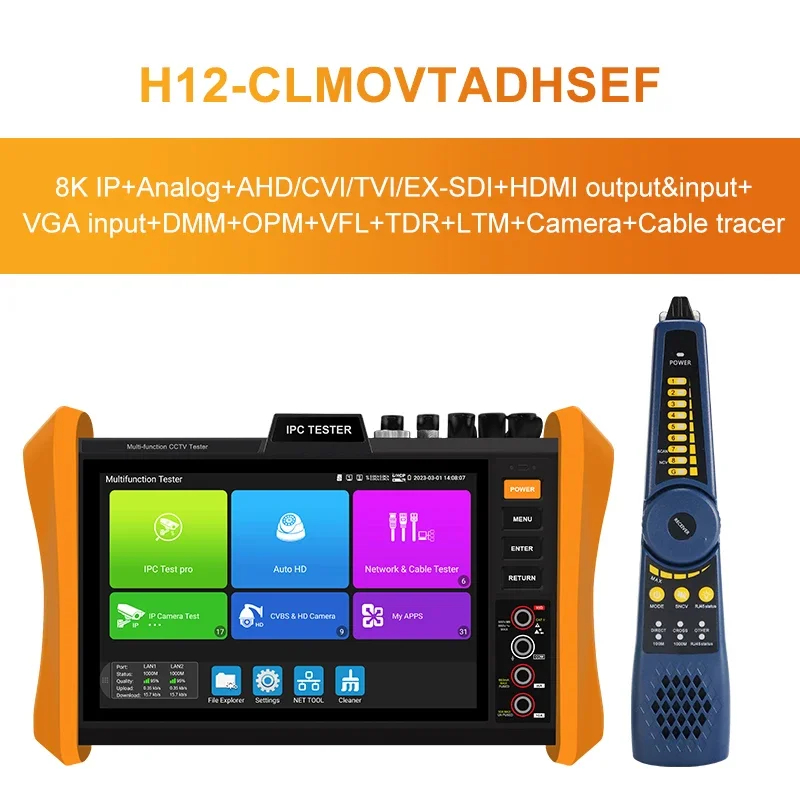

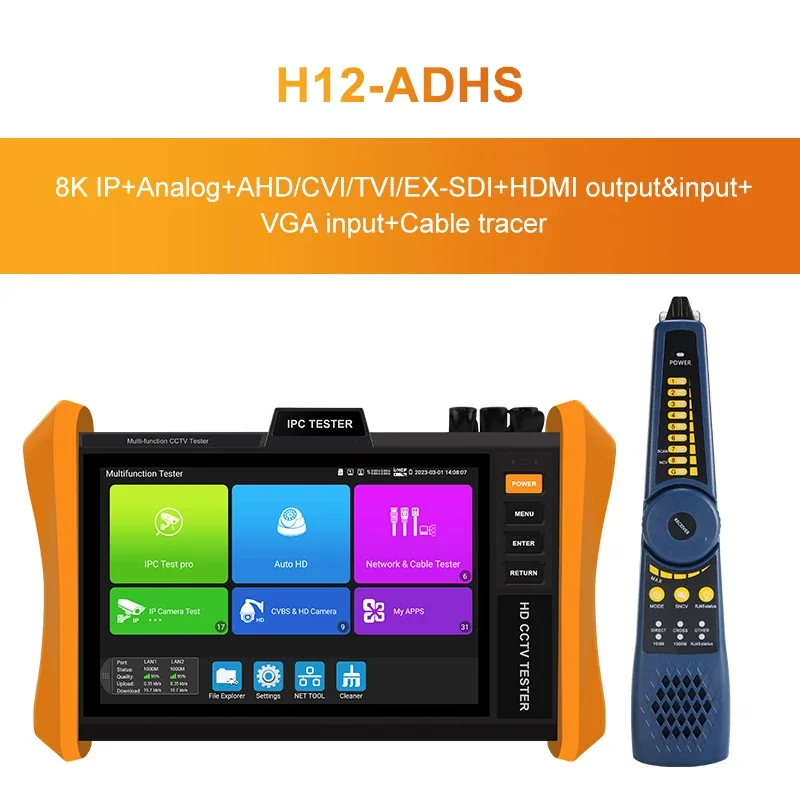

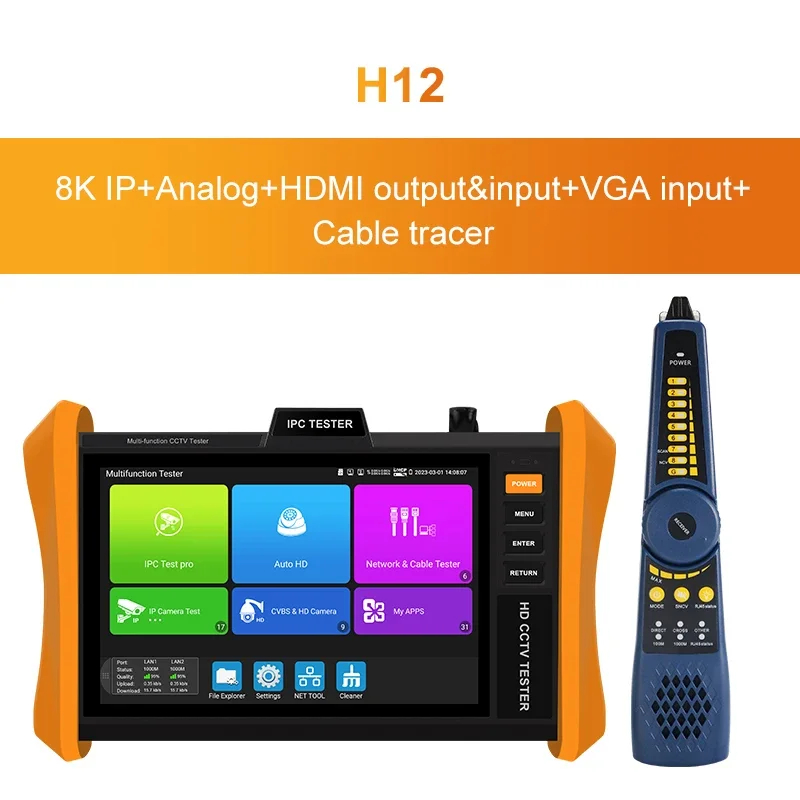

Model: H12/H12-ADH/H12-ADHS/H12-CLMOVTADHSEF

8 inch IPS touch screen, 1920*1200 resolution

8MP CVI/ TVI/ AHD camera test, support TVI5.0 Audio test

8MP EX-SDI, HD-SDI, 3G-SDI camera test* Optional

55V PoE++ power output, max power 90W

DC12V 3A, DC24V 2A power output

4K 30FPS HDMI Input & 4K 60FPS HDMI output

Brand new dual gigabit Ethernet ports

WIFI analyzer, support 2.4G/5G frequency band

ONE Gigabit SFP optical fiber module port

Laser distance meter, maxmeasurement 100m, accuracy±3mm Optional

Built-in camera,support camera lens focal distance test. *Optional

Optical fiber network test / Fiber test:

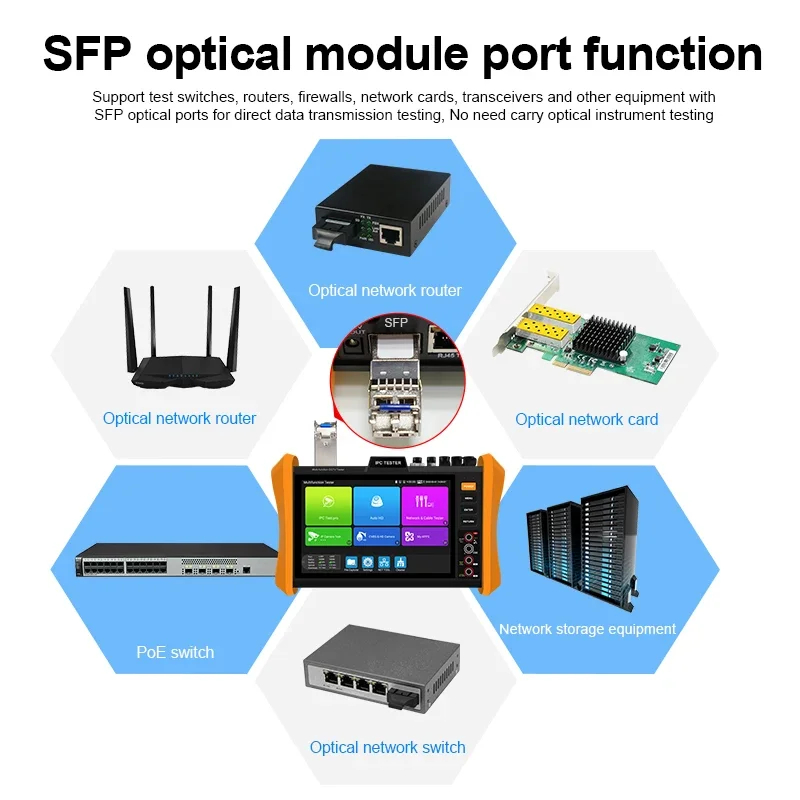

NEW ONE Gigabit SFP port, support insert SFP optical fiber module, for optical fiber network testing

● Optical power meter and visual fault locator Optional

Laser distance
meter & Lens focal length test:

NEW Laser distance meter, range 100m, accuracy ±3mm. It supports multiple measurement modes of length, side length, area and volume, and can accumulate and save test results.Optional

NEW Built-in camera. Focal length of the lens calculating, recommend lens by testing and monitoring the distance, display real-time images, simulating the display area of different lens sizes of 2.8 /3.6 /4 /6 /8 /12 /16 /25mm, for reference in lens purchase Optional

Camera test:

● 8 inch IPS touch screen, 1920*1200 resolution

● H.265 & H .264 IP, 8K video display via mainstream

● Support TVI 5.0 audio test

● TVI 5.0 test, 3840 x 2160P 15 FPS, 4xzoom, video record& playback, coaxial PTZ control & call OSD menu

● 8MP AHD test, 3840 x 2160P 15 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP EX-SDI test, 3840 x 2160P 25/30 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu *Optional

● HD-SDI test, 1920 x 1080P 25/30/50/60FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *Optional

● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSDmenu *Optional

● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu.

● 4K 30FPS HDMI Input &4K 60FPS HDMI output

● Rapid ONVIF, Auto log in and display image, one-key create testing report, including camera IP address, resolution, encoding and other related information; support cross-network segment test; audio and video synchronization test; face recognition and other functions; NEW

● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

● CVBS camera test and PTZ control

● IPC TEST Non-ONVIF test, HIK test tool Hikvision camera, DH test tool Dahua camera

● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement

● DC12V/3A, DC24V 2A power output

● DC5V 2A power output, can connect USB camera, USB and Mouse, as power bank

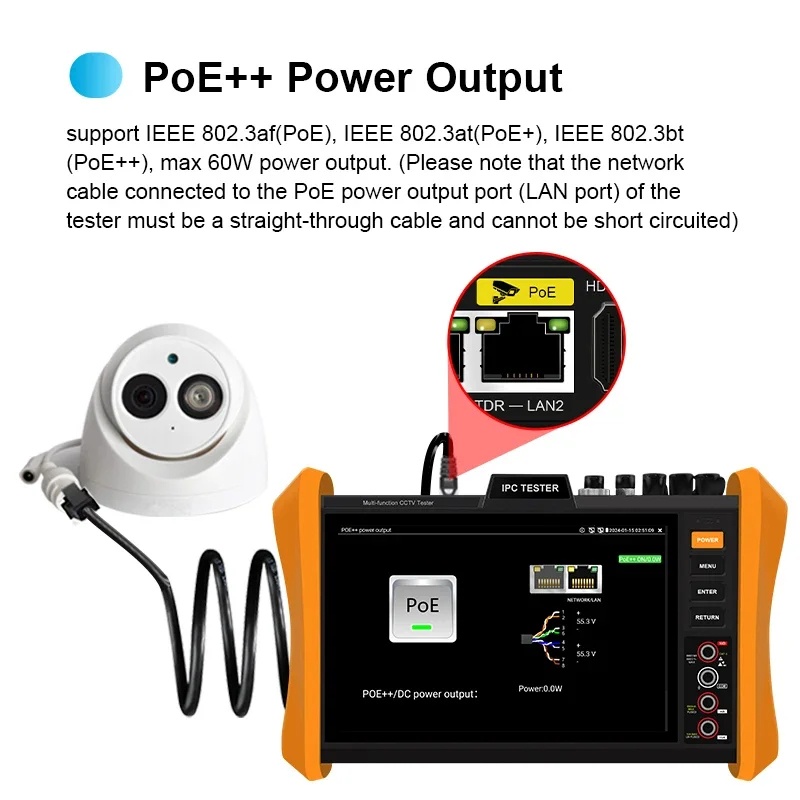

● 55V PoE++ power output power, max power 90W

● Rapid video, just by one key to detect all network cameras and auto display

● Built in Wi-Fi Analysis, support 2.4G/5G frequency band, can test Wi-Fi camera, create Wi-Fi hotspot

Cable test:

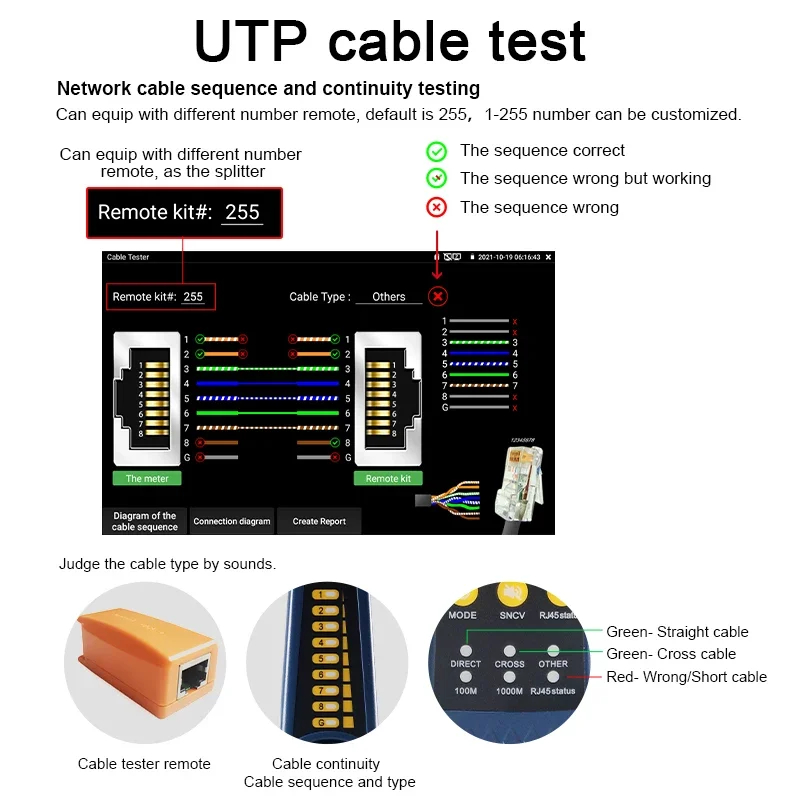

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customizedand detect near-end, mid-end and far-end fault test of RJ45 cable plug

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

● Upgraded Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables, more accurately.

● TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit measurement
range 1.2KM, Add TDR network port, it is convenient to test network cable.
*Optional

Other functions:

ONE Gigabit SFP optical fiber module port

Laser distance meter, max measurement 100m, accuracy±3mm *Optional

Built-in camera, support camera Lens focal distance test. *Optional

Laser distance meter, measurement range 100m, accuracy±3mm *Optional

TesterPlay, support remote control and voice intercom

● HDMI Input support 4K 30FPS, HDMI output support 4K 60FPS

● 2K 60FPS VGA input

● Professional WIFI Analyzer, detect the surrounding wifi signal and signal strength

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

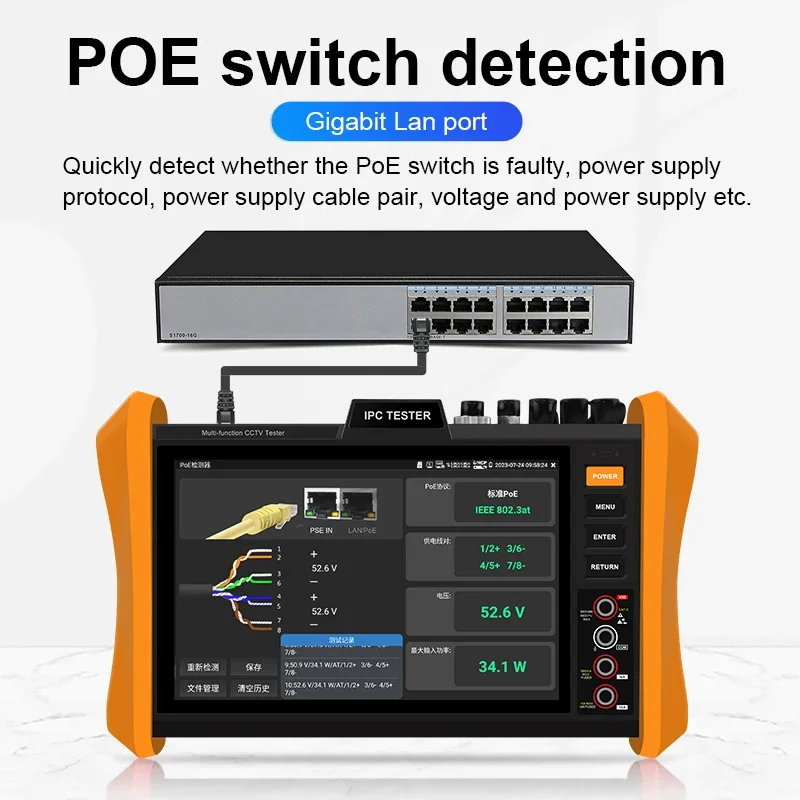

● POE & power information, DC12V& PoE power and voltage output /input measurement

● Tester Play: Tester, android version mobile phone and PC display at the same time

● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

● 4K color bar generator, send CVI/TVI/AHD/CVBS color bar video signal for testing monitor or video cable, support 4K resolution

● Self-update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Quick office, quick office app support excel, word, ppt format doc. editable

● 8GB TFT card included

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 11.1V /5200mAh Lithium Ion Battery, after 3.5 hours charging, working time lasts 11 hours

Additional information

Weight 0.374 kg
Color

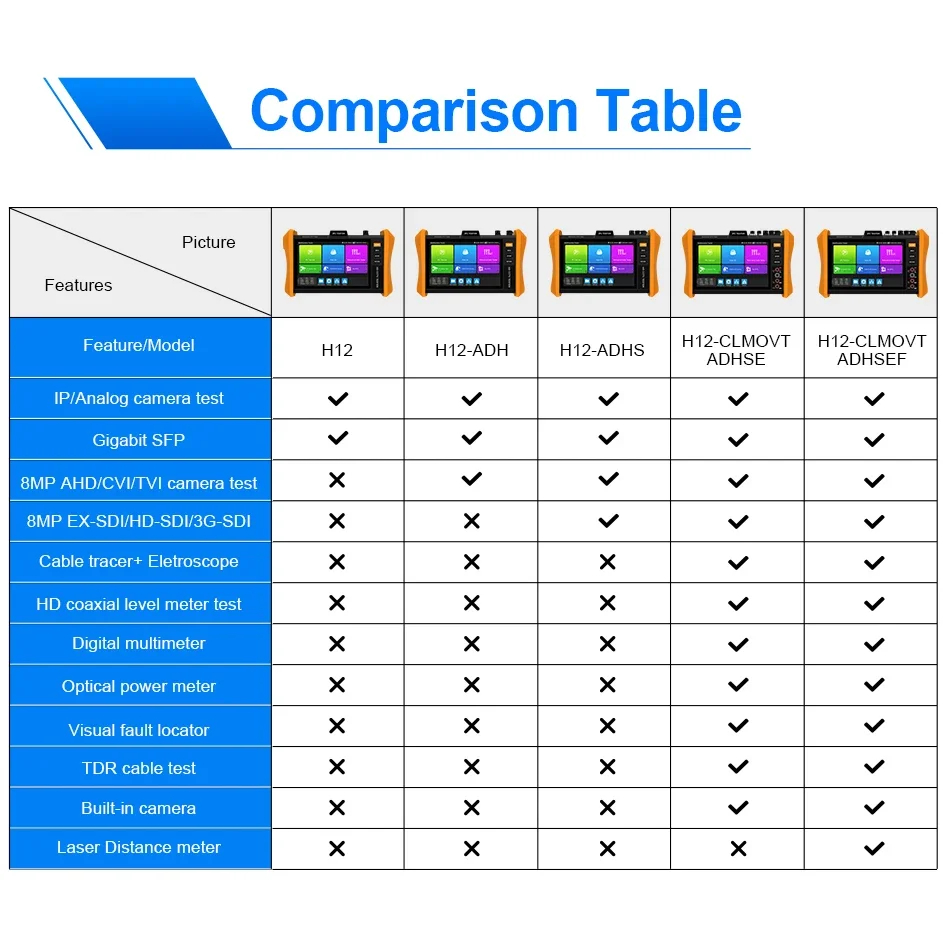

H12, H12-CLMOVTADHSE, H12-CLMOVTADHSEF, H12-ADH, H12-ADHS
