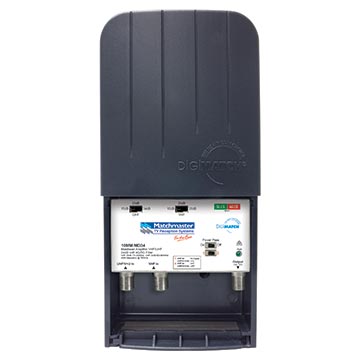

Power Passing Masthead Amplifier VHF/UHF 34dB with 4G/5G Filter

$ 57.05 inc GST

Built in 4G LTE 694MHz low pass filter filtering at 750MHz is >40dB at maximum gain for UHF of 34dB and >50dB at maximum gain for VHF of 28dB. Power through switch to drive extra amplifiers for both VHF and UHF with gain adjustment switch selectable between 15, 25 and 34dB for UHF and 10, 20 and 28dB for VHF. Heavy-duty UV stable outdoor weather proof casing

Description





Built in 4G LTE 694MHz low pass filter filtering at 750MHz is >40dB at maximum gain for UHF of 34dB and >50dB at maximum gain for VHF of 28dB

Power through switch to drive extra amplifiers for both VHF and UHF with gain adjustment switch selectable between 15, 25 and 34dB for UHF and 10, 20 and 28dB for VHF

Heavy-duty UV stable outdoor weather proof casing

Can be used with VHF or UHF antenna‘s or a combination of both

VHF input return loss is >12dB with a noise figure of <4.8dB and UHF input return loss is >11dB with a noise figure of <2.9dB

Amplfier only suitable power supply required

Additional information

Weight2 kg
