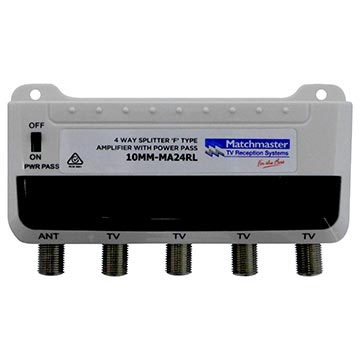

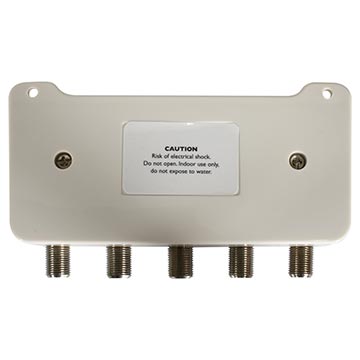

Amplifier 4 way splitter

$ 76.99 inc GST

Amplifier 4 Way – 4G LTE Filter

Description

Amplifier 4 Way – 4G LTE Filter

  • Easy to install and automatic in operation
  • Built-in LTE filter 4G (694MHz)
  • Remotely powered via any input
  • Fully screened for digital application
  • The power supply can be used simultaneously for a masthead amplifier
  • Warning: Indoor use only.

Specifications

Frequency Range45-694MHz
Number of Inputs1
Number of Outputs4
Typical Gain8dB
Maximum Output92dBµV at 60dB IMR
Low Noise≤7.2dB
Power Supply Range12 to 24VDC
Current Draw50mA @ 12VDC
Power Pass ThroughMaximum 24VDC / 500mA



Additional information

Weight.3 kg
Dimensions25 × 5 × 4 cm
