RG6 Coaxial Cable Quad

$ 1.59 inc GST

RG6 Made up as long as you want just enter the length quantity you require at checkout and I’ll do the rest, price based on a per meter basis. Also if you require ends to be put on I can do this as well, just choose what you want in fittings and add them to your cart.

SOLD PER METER

Description

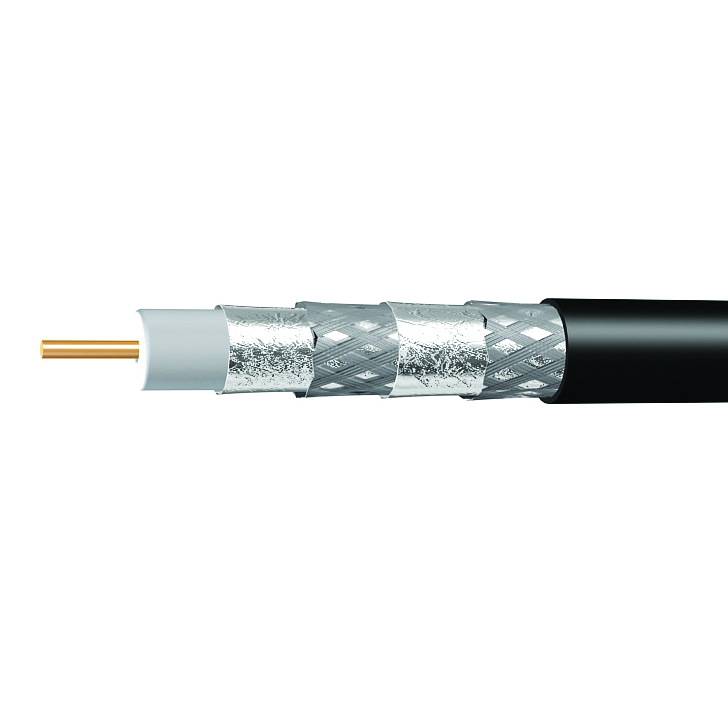

Pay TV-approved, this quad-shield cable 305-meter cable is also suitable for digital TV. Both Foxtel and Optus approved, it has an inner conductor made of high-quality copper-clad steel wire. Its insulation consists of physically foamed PE, and its jacket is made from either FR PVC or standard PVC. It is also 2011/65/EU-compliant for guaranteed quality.

RG6 Coax Features & Benefits

  • An RG6 meter marked cable with quad shielding
  • Suitable and approved for Pay and Digital TV
  • Foxtel (F30440) and Optus (4868) approved

Specifications

Construction Inner Conductor Material Copper Clad Steel Wire

Diameter, mm 1.02±0.01
Insulation Material Physically Foamed PE
Diameter, mm 4.57±0.15
Outer Conductor 1st shield Bonded Al/PET/Al Tape 4.78 ±0.13
2nd shield Al-Mg Alloy Wire Braid
3rd shield Non-bonded Al/PET/Al Tape
4th shield Al-Mg Alloy Wire Braid
Jacket Material FR PVC or PVC
Diameter, mm 7.54±0.20
Mechanical Properties
Bending Radius, mm Single 35
Typical 70
Pulling Strength, N 200
Adhesion Force, N >20
Electrical Properties
Impedance, Ω 75±3
DCR of Inner conductor, Ω /km 102.0
DCR of outer conductor, Ω /km 19.1
Capacitance, pF/m 54
Propagation Velocity, % 82
DC Breakdown Voltage, kV 5.0
Insulation Resistance, MΩ•km >1×104
Screening Attenuation, dB >105@5~1000MHz
>95@1000~2000MHz
>85@2000~3000MHz

Attenuation

Frequency MHz Max. attenuation @20℃,dB/100m
5MHz 1.90
55MHz 5.25
211MHz 10.00
250MHz 10.82
270MHz 11.04
300MHz 11.64
330MHz 12.26
350MHz 12.63
400MHz 13.61
450MHz 14.43
500MHz 15.29
550MHz 16.08
600MHz 16.73
750MHz 18.54
870MHz 20.04
1000MHz 21.49
1300MHz 24.49
1450MHz 25.89
1750MHz 28.67
2150MHz 31.79
2600MHz 35.30
2832MHz 37.74
3000MHz 38.84
Return Loss, dB
5-3000MHz ≥20
Standards
2011/65/EU Compliant

Additional information

Weight.03 kg
Dimensions1 × 1 cm
