ZOYI ZTR01 2in1 Thermal Imager AC/DC Current Voltage Multimeter IR Camera -20℃ to 550℃ Floor Pipeline Heating Electronic Inspect

Description

DC Voltage : 1000.0V/250.00V/25.000V2.5000V/250.00mV/25.000mV

• Operating Mode : Manual range
• Hign-concerned Chemical : None
• DIY Supplies : Electrical
• AC Voltage : 750
• AC Voltage : 750.0V/250.00V/25.000V2.5000V/250.00mV/25.000mV

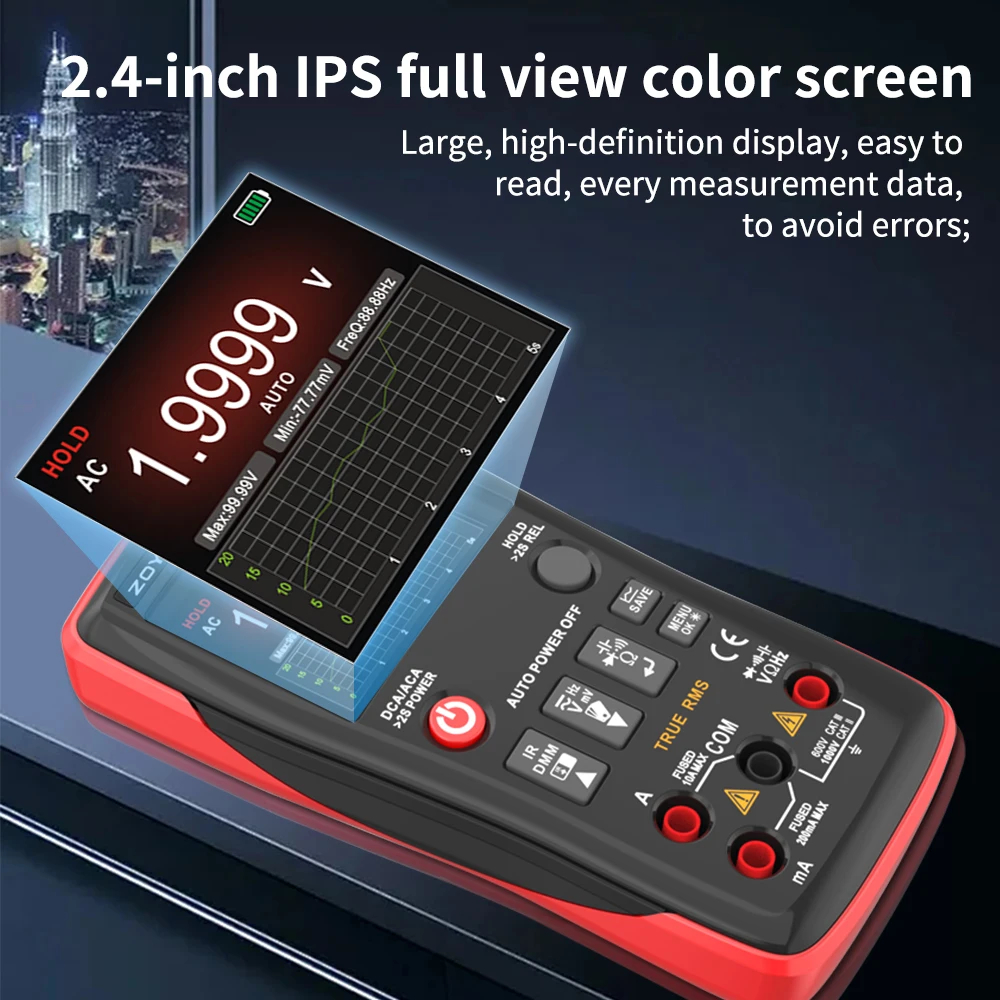

• Display Type : Digital Display
• AC Current : 10.000A/2.5000A250.00mA/25.000mA
• Measuring Resistance Range : 250.00 /250.00K/25.000K/2.5000K/25.00M/2.5000M/250.0M
• Certification : CE
• DC Current : 10.000A/2.5000A250.00mA/25.000mA
• Measuring Capacitance Range : 9.999nF-99.99nF-999.9nF-9.999uF-99.99uF-999.9uF-9.999mF
• Model Number : ZT-R01
• Dimensions : 149*76*33.5mm
• Thermal imaging pixel : 32*32
• FOV : 33°H*33°V
• Measuring range : -20℃ to +550℃
• Color palette : 4
• Temperature measurement error : >0℃:±2℃/±2%
• Charging method : Type-C
• Diode : Yes
• Continuity : Yes

Features:

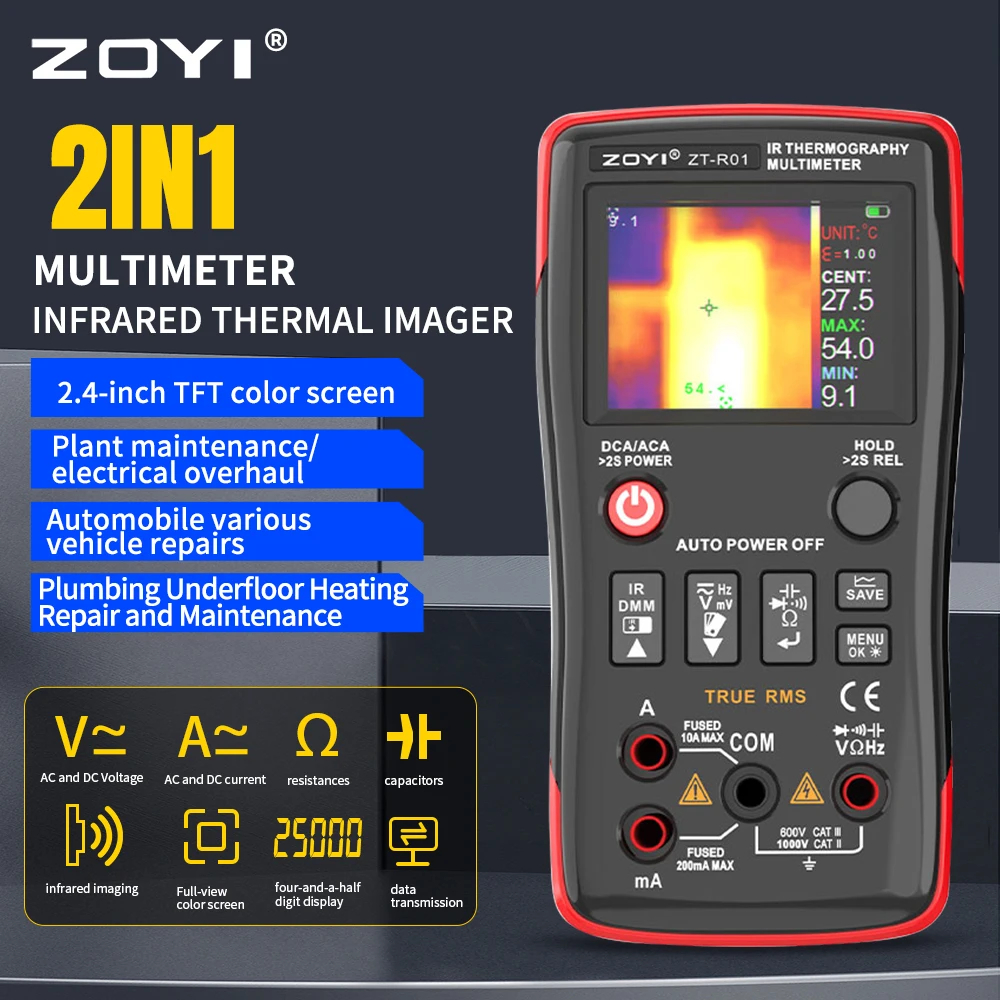

2-IN-1 Function: Thermal imager + Multimeter 2-In-1 ,One click switching between two functions,with compact and small size, light weight and easy to carry.

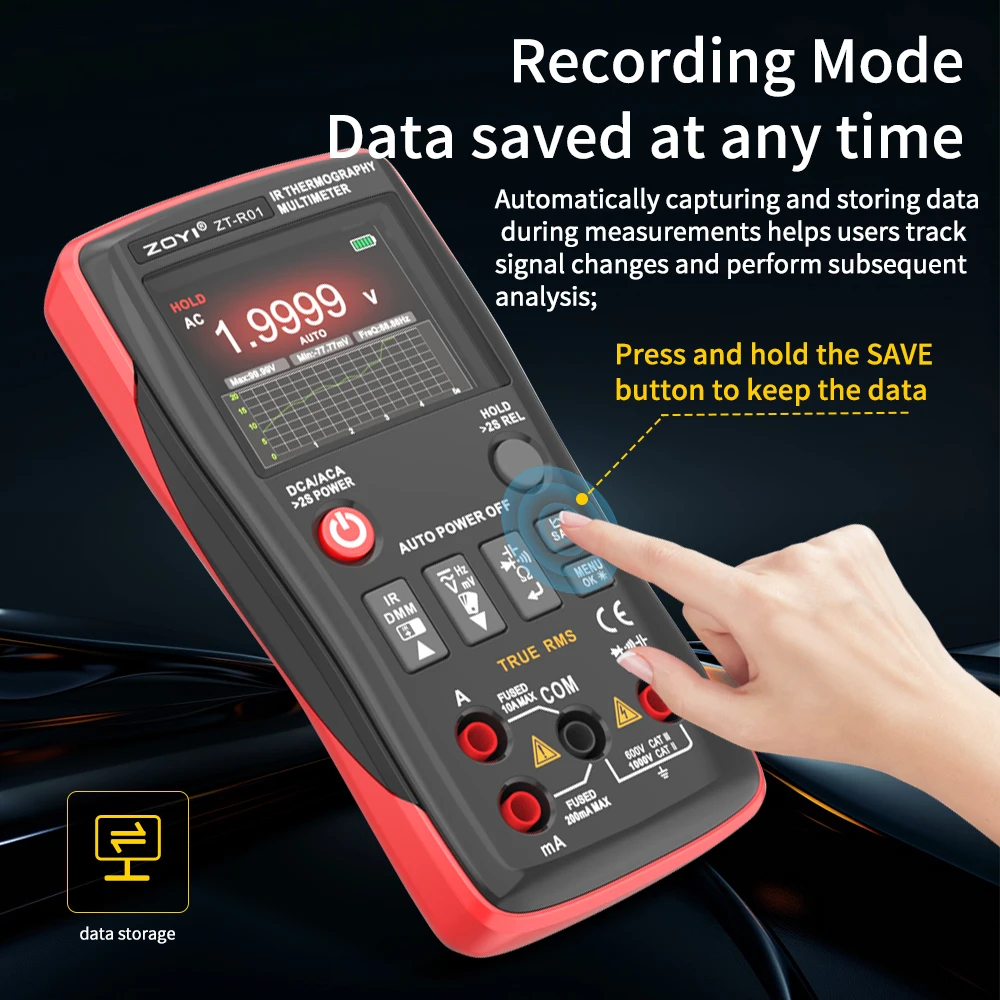

Data Transmission & PC Software Analysis : Under USB mode, it is possible to transfer locally saved thermal imaging images and the multimeter mensurement result recording by data chart .And displayed on the computer through PC software.

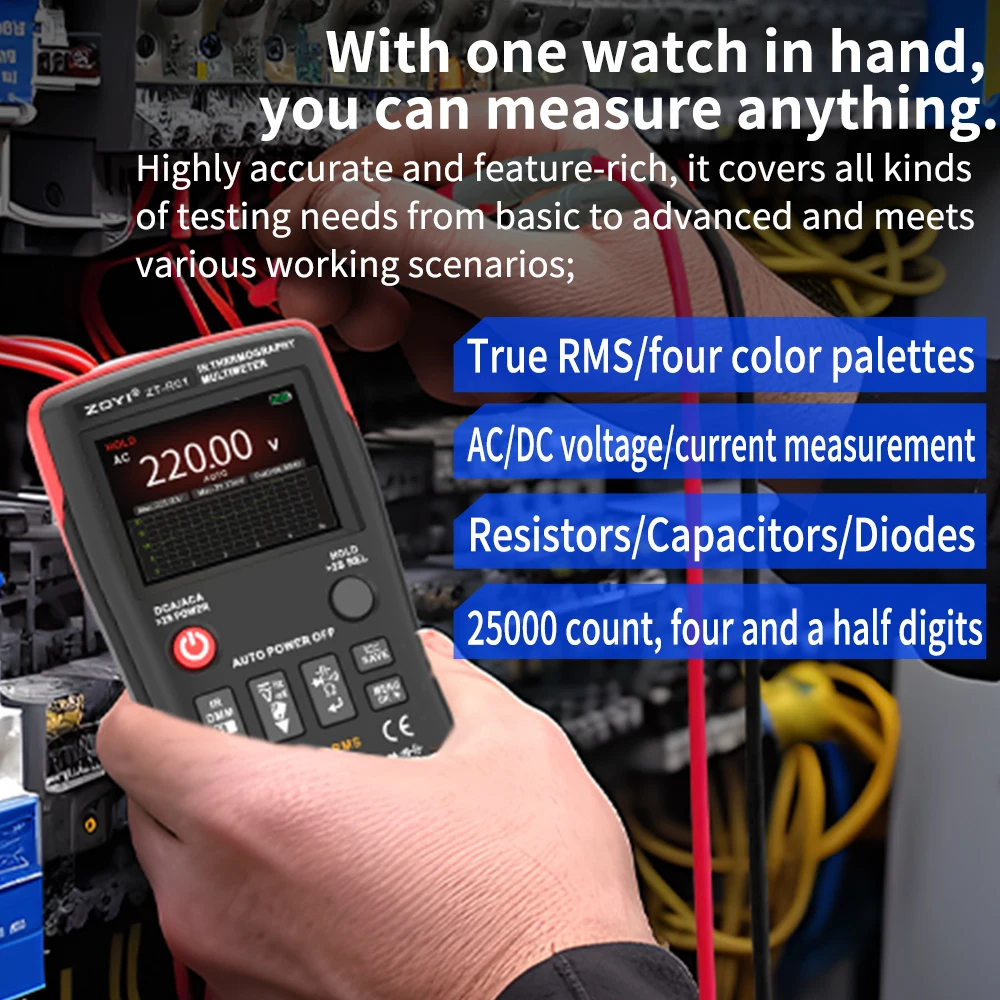

Multifunctional : The multimeter can measure DC voltage, AC voltage, resistance, diode, on/off, capacitance, etc.
Language : Both Chinese and English can be set.
Battery Management : built-in lithium battery supporting USB charging, with automatic screen turn off and automatic power off functions.
Widely Applications : can be used for circuit board inspection and maintenance, power supply maintenance, electronic equipment maintenance, Home appliance overhaul, is an ideal choice for electronics and maintenance technicians.

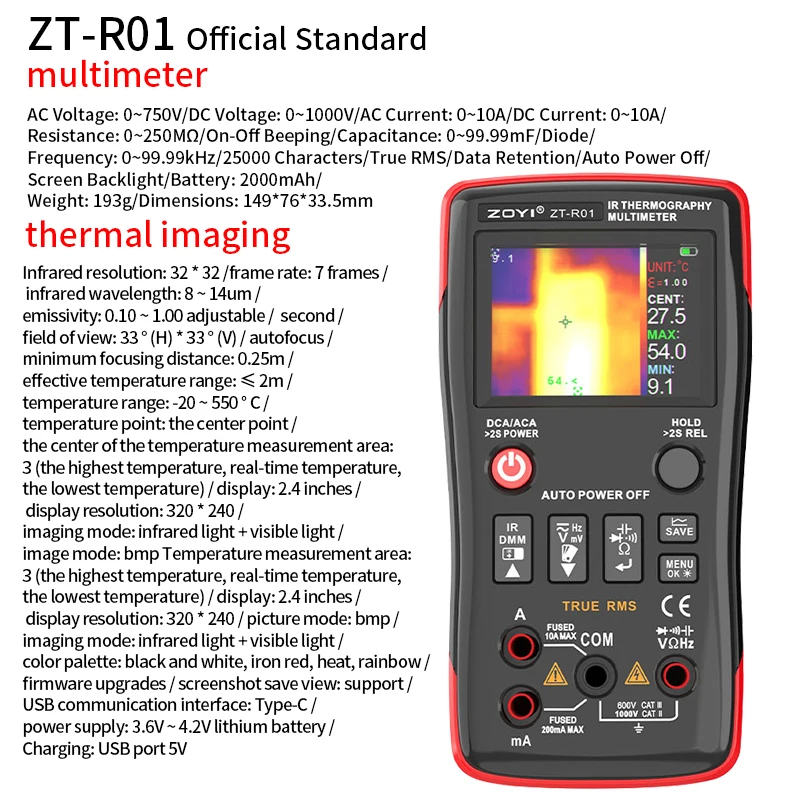

Specification:

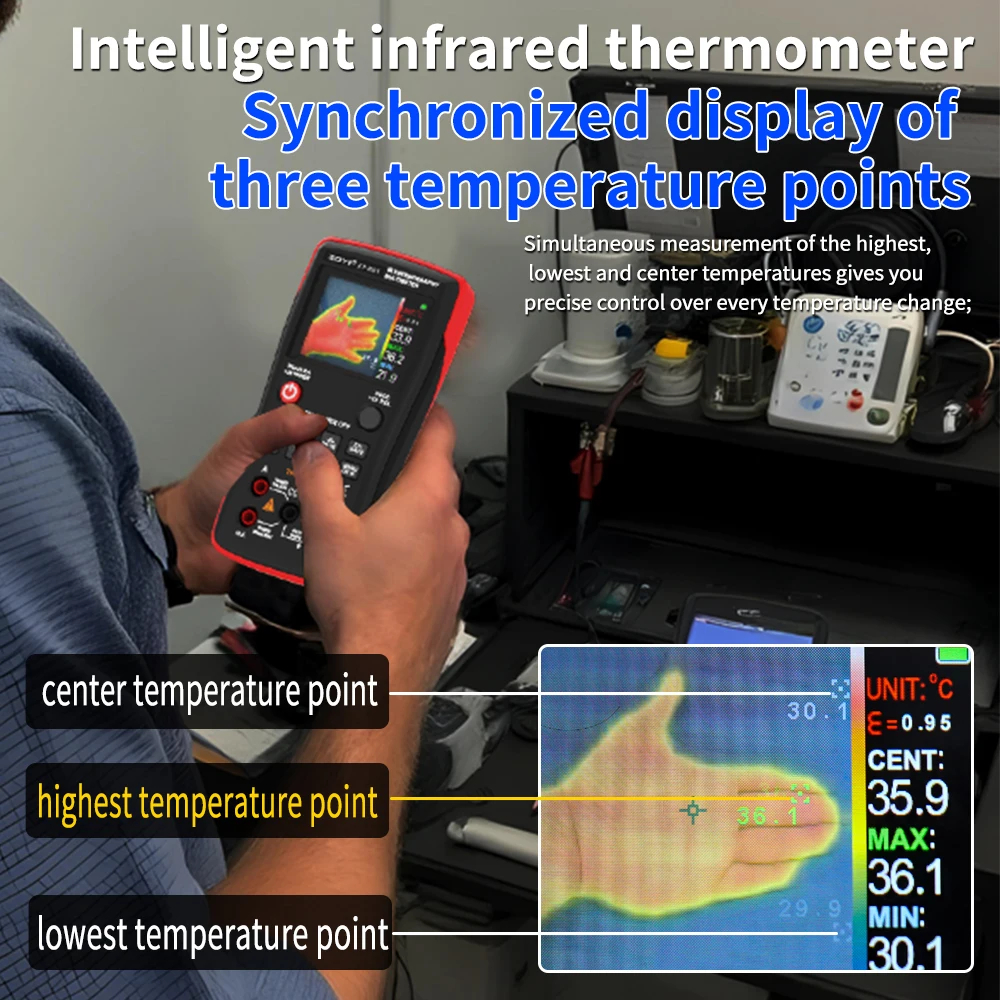

Thermal Imager Parameters:
Sensor: Uncooled focal plane
Thermal imaging pixel: 32*32
FOV:33°H*33°V
Emissivity: 0.1-0.99 adjustable
Measuring range:-20~ +550℃
Mode:automatic gain
Color palette:4
Temperature measurement error:>0℃:±2℃/±2%
Multimeter Parameters:
Maximum DC input voltage:1000V
Maximum AC input voltage:750V
Maximum measured resistance:250MΩ
Maximum measuring resistance of capacitance:1000uF
Duty cycle measurement range:0.1%-99.9%
Diode measuringyes
USB interface: TYPE-C

Battery: Built-in Lithium battery
