network cable tester LANTDR professional with tdr

$ 119.00 inc GST

Network cable tester with tdr! Time reflectometer

Wiremap:

Shows the continuity of each cable and pin-out, displaying graphically on the Testers LCD screen from pin-A to pin-B including errors pin by pin. It also displays any crossover between two or more cables.

Pair & Length:

Time Domain Reflectometer (TDR) technology calculates cable length and distance to interruptions, enabling the technician to identify locate & repair faulty or damaged cable – even to a pair level.

Coax & Telephone:

LANTDR can also be used to check the phone, coaxial, or cables made from any metal.

Calibration:

Configuration and calibration of the Network Cable Tester can be set by the user.

Category:

Description

Network Cable Tester with TDR

Network Cable Tester with TDR

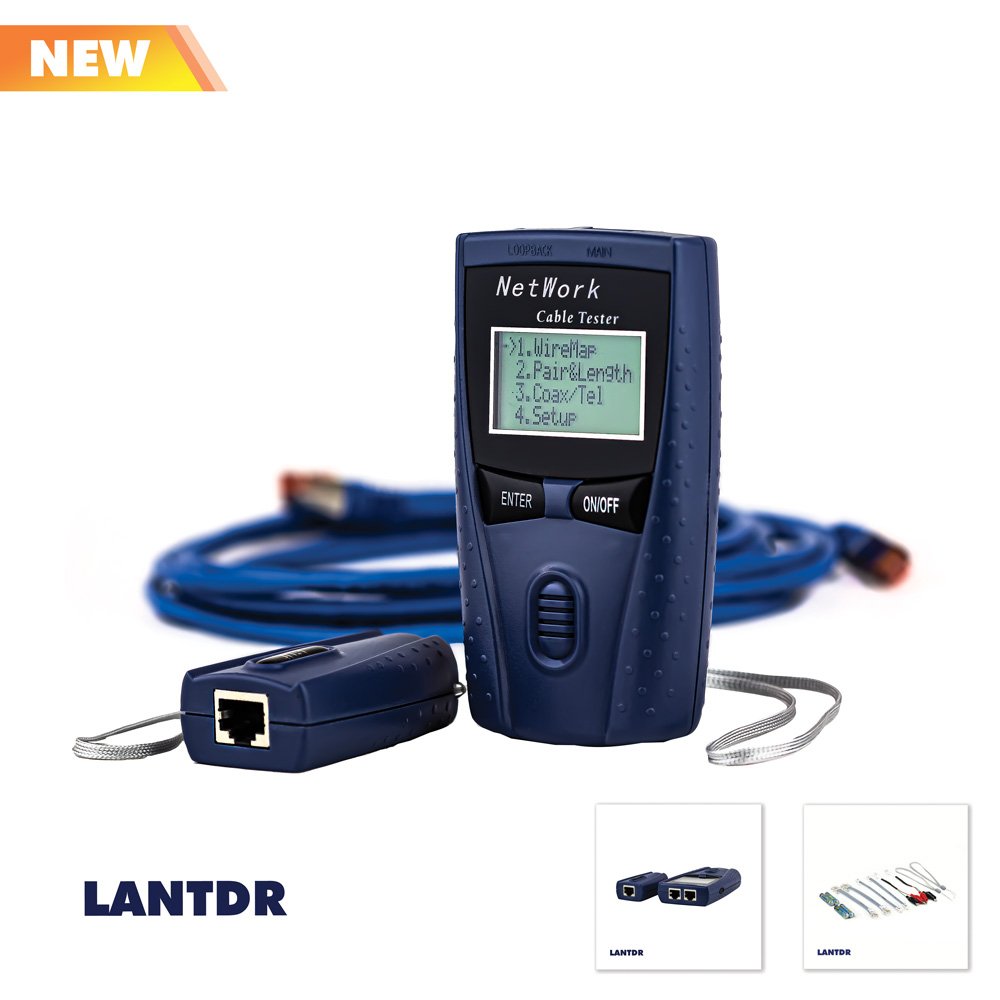

LANTDR is a Professional Network Cable Tester that can identify if wires are paired correctly, shows distance to breaks or interruptions, and if the cable has the correct level of resistance, all using the integrated LCD display.

Wiremap:

Shows the continuity of each cable and pin-out, displaying graphically on the Testers LCD screen from pin-A to pin-B including errors pin by pin. It also displays any crossover between two or more cables.

Pair & Length:

Time Domain Reflectometer (TDR) technology calculates cable length and distance to interruptions, enabling the technician to identify locate & repair faulty or damaged cable – even to a pair level.

Coax & Telephone:

LANTDR can also be used to check the phone, coaxial, or cables made from any metal.

Calibration:

Configuration and calibration of the Network Cable Tester can be set by the user.


Features:

  • Detects open and short circuits, reverse connections, breaks, separate connections CAT6 / CAT5E / UTP / STP twisted pairs, coaxial and telephone cables.
  • Detects distance to network cable errors or interruptions via RJ45, RJ11, UTP/FTP, CAT5e, CAT6e Network, and Coaxial cables.
  • Cable length calibration is dynamic, measurement unit can be in Metres or Feet.
  • Easy to operate, power consumption is low. Up to 50 hours of standby time.
  • Identifies distance to damage and cable length with 98% accuracy.
  • Checks and verifies the mapping table of the wire connected.
  • Automatic shut off after 10 minutes if there is no operation.
  • LCD has 4 lines x 16 characters to ensure low light legibility.
  • One Person can complete cable checks.
  • Cable connectivity tested separately.
  • Unique calibration data can be saved.

Specifications:

  • Weight:
    129g   Main Module     (2 RJ45 Sockets)
    30g     Remote Module (1 RJ45 Socket)
  • Dimensions:
    12.5 x 7 x 2.5cm   Main Module
    7.5 x 4 x 2.5cm     Remote Module
  • Working Temperature: -20º C  to  70º C
  • Storage Temperature: -30º C  to  80º C
  • Automatic Power Switch: Shuts off after 10 minutes of inactivity
  • Test Accuracy: 98%
  • Test Range: 5 to 500 Metres
  • Power Consumption: 25mA
  • Colour: Blue
  • Warranty: 1 year

Contents:

  • Power: 4 x 1.5V AAA Alkaline Batteries
  • Multifunction Computer Network Cable Tester: 1 x Main Module and 1 x Remote Module
  • Display: 40 x 25mm Screen LCD
  • 2 x Wrist Lanyards
  • 2 x RJ45 Cables
  • 2 x RJ11 Cables
  • 2 x RJ45 to RJ11 Jumper Cables
  • 1 x Telephone Cable
  • Remote Adapter & Commutator
  • User Manual

Product Code: LANTDR

 Qty: 1

Network Cable Tester with TDR
Network Cable Tester with TDR



Additional information

Weight.5 kg
