REED SWITCH WITH N/O & N/C

$ 5.95 inc GST

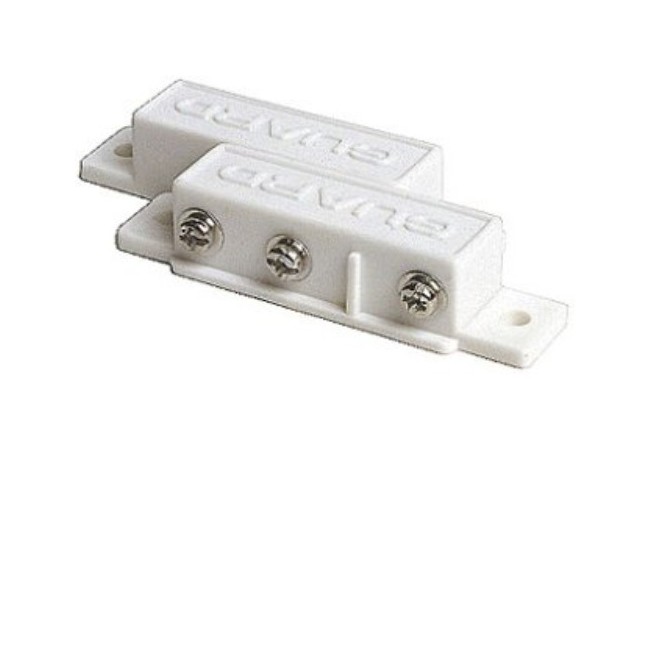

Standard reed switch which can be set to either N.O or N.C .White plastic housing for switch and magnet . Can be screw mounted or attached by double sided tape provided Dim.: 14 x 14 x 65mm (WHL)

219 in stock (can be backordered)

Description

REED SWITCH WITH N/O & N/C
SCREW TERMINALS MS-168

SR3

Standard reed switch which can be set to either N.O or N.C . White plastic housing for switch and magnet
– Can be screw mounted or attached by double sided tape provided.
– Dim.: 14 x 14 x 65mm (WHL)

Specifications

  • NO & NC type, Normally open & Normally close
  • Operating gap: 3cm Max
  • Contact R.: 150m Ohm
  • Switching current: 0.25A
  • Switching voltage DC: 100V
  • Electrical life: 10,000,000 Cycles
  • Case: ABS

Additional information

Weight0.0030 kg
