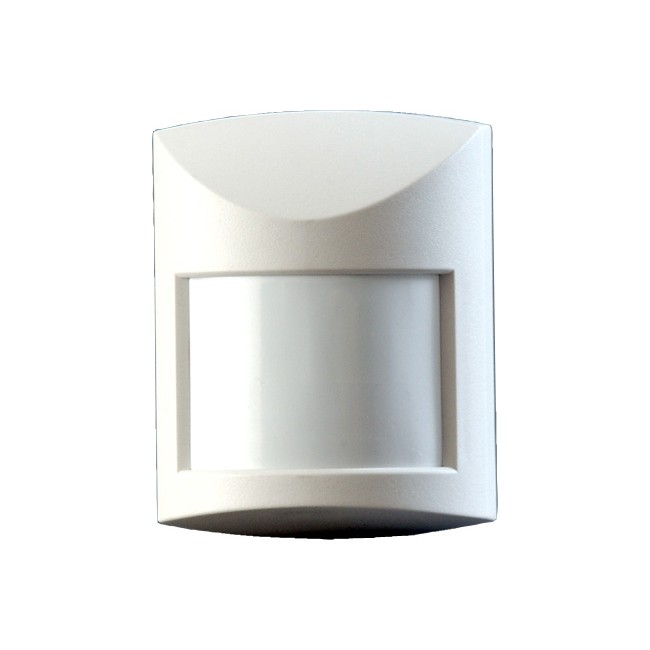

QUANTUM-Q PET AWARE PIR

$ 57.00 inc GST

Boasting a QUAD Element Pyro Sensor it has a better detection rate and higher noise immunity for lower false alarms. Quad element pyro sensor 15x15m wide angle coverage High R.F. and E.S.D. immunity Pet Immunity

Available on back-order

Categories: , , SKU: 01303541

Description

QUANTUM-Q PET AWARE PIR
NESS (100-695)

NESS 106-259

{tab Overview}

106-259 QUANTUM-Q PET AWARE PIR – NESS

The Ness Quantum -Q PET is the most popular PIR ever produced by Ness Corporation. Now boasting a QUAD Element Pyro Sensor it has a better detection rate and higher noise immunity for lower false alarms.
Quantum-Q is Australian designed and made using precision S.M.D. technology. With enhanced 15 metre wide angle coverage, selectable Pulse Count and Sensitivity adjustmentsproviding the flexibility to use the Quantum-Q in most environments.
Installed in rooms or in hallways, Ness Quantum-Q protectsyou by detecting intruders body temperature using infra-red technology. It offers quality, performance and reliability at the right price.
Pet Immunity is set typically for a single pet up to 18kg or multiple pets uo to 10kg total.
Very discrete in size, designed for all types of interiors with a detection range of 15m.

{tab Features}

  • Quad element pyro sensor
  • 15m x 15m wide angle coverage
  • Standard (Std model refer Ness Part No. 106-079) and Pet Aware models
  • Adjustable Pulse Count
  • Adjustable Range
  • High R.F. and E.S.D. immunity
  • High white light immunity
  • High quality patented Fresnel lens
  • Front cover tamper protection
  • Totally silent solid state relay with high immunity tomagnetic fields
  • Optional mounting bracket available
  • 9~15VDC Operation
  • Optional Q100-243 bracket sold separately

{tab Specifications}

MOUNTING HEIGHT1.1m min, 3.1 max, 2.1m-2.3m for optiomal detection
COVERAGE15m x 15m @ 90°
DETECTION ZONES20 QUAD element zones
PET IMMUNITYSingle pet up to 18kg or multiple pets up to 10kg total
RANGE SELECTSelectable High/Low  (15m/12m)
PULSE COUNTSelectable 1–2 or 3–4.
VISUAL DISPLAYRed Alarm LED
OPERATING VOLTAGE                9 – 15 VDC
DIMENSIONS (H-W-D)85 x 66 x 45 mm
ALARM PERIOD5 seconds
WARM UP PERIOD30 seconds
CURRENT DRAW7mA
ALARM OUTPUTNormally closedrelay, dry contacts. Max. 100mA@24V
TAMPER OUTPUTNormally closeddry contacts

{/tabs}



Additional information

Weight0.0830 kg
