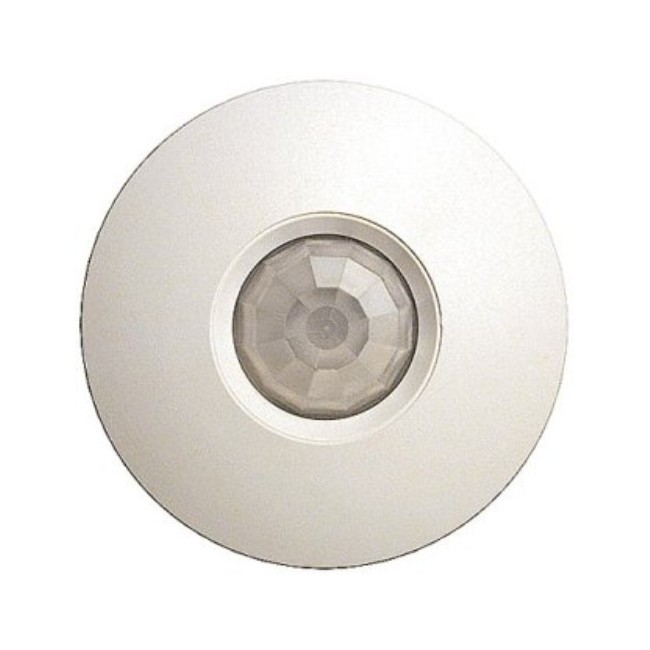

QUANTUM 360 DEGREE PIR

$ 49.90 inc GST

The Quantum 360 ceiling mount detector, for complete and reliable 360° coverage. Provides coverage of 12m diameter at floor level when installed on a standard 2.4m ceiling. Detection zones: 34 Dual element zones Coverage: 12.8x8m Mounting height: 2.1m to 5m Superior false alarm protection Adjustable range (Hi-Lo Shunt) Selectable pulse count (1-2, 3-4)

Available on back-order

Categories: , , SKU: 01303490

Description

QUANTUM 360 DEGREE PIR
DETECTOR NESS IR360

NESS Q100-048

QUANTUM 360 PIR – NESS

The Quantum 360 ceiling mount detector, for complete and reliable 360° coverage. Provides coverage of 12 metre diameter at floor level when installed on a standard2.4 metre ceiling.

Utilising the latest SMD technology and  incorporating the proven Quantum design with selectable Pulse Count and sensitivity the IR360 provides outstanding performance at an unbelievable price.

FEATURES:

  • Ceiling mount with 360° coverage ideal in crowded rooms where objects may block the view of wall mounted detectors.
  • Detection zones: 34 Dual element zones
  • Coverage: 12.8m x 8M
  • Mounting height: 2.1M to 5M
  • Superior false alarm protection
  • Adjustable range (Hi-Lo Shunt)
  • Selectable pulse count (1-2, 3-4)
  • RFI Protection
  • Walk test LED
  • Temperature Change Protection
  • N/C alarm output
  • 12V DC operation
  • Tamper protection

SPECIFICATIONS:

  • Dimensions: 102mm diameter x 30mm
  • Mounting height: 2.4m ceiling (recommended)
  • Detection zones: 33 dual element zones
  • Sensor: Dual element pyro-electric
  • Operating voltage: 9–15 VDC
  • Current draw: 15mA
  • R.F.I. Immunity: >15V/m @ 10-1000MHz
  • Relay output: Normally closed

Additional information

Weight0.0930 kg
