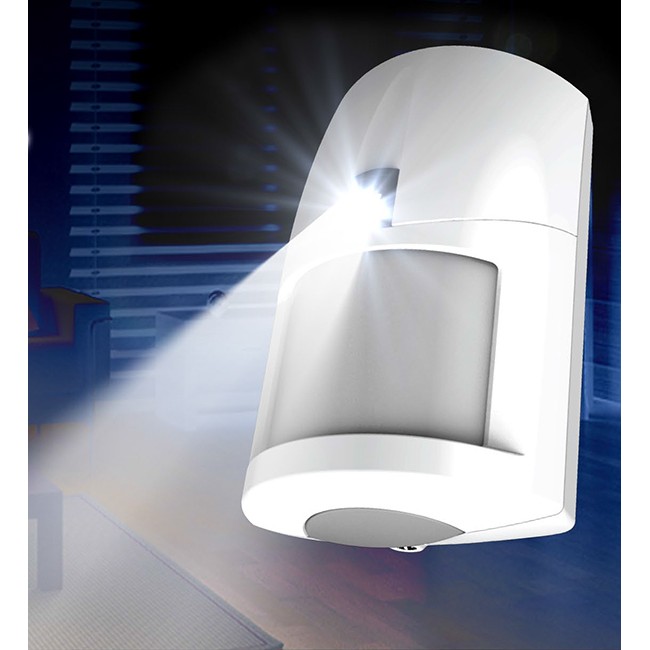

LUX RADIO PIR WITH WHITE LED

$ 114.95 inc GST

Ness LUX Radio PIR is a unique wireless motion detector with a white LED night-light especially designed for the latest generation of Ness radio control panels. 15m x 15m detection coverage Look-down creep zone High RF immunity White light immunity Adjustable range and pulse count Extremely long battery life, up to 10 years

8 in stock (can be backordered)

Categories: , , SKU: 01303552

Description

LUX RADIO PIR WITH WHITE LED
15MT DETECTION RANGE MAX

NESS 106-168

106-168 NESS LUX WIRELESS PIR

Ness LUX Radio PIR is a unique wireless motion detector with a white LED night-light especially designed for the latest generation of Ness radio control panels.

LUX shares all the features and benefits of the Ness Radio PIR range including 15m x 15m detection coverage, look-down creep zone, high RF immunity, white light immunity, adjustable range, adjustable pulse count and extremely long battery life, up to 10 years. Ceiling mounting is also available with the addition of a 106-169 bracket.

For safety and convenience, LUX’s night-light function provides a motion-activated cone of light to help you find your way at night. The night-light remains lit as long as itdetects motion and stays on for an extra 10 seconds after motion has stopped.

Features:

  • 15m x 15m wide angle coverage
  • Look down ‘Creep Zone’
  • White LED motion activated night-light
  • Adjustable Pulse Count
  • Adjustable Range
  • High R.F. and E.S.D. immunity
  • High white light immunity
  • SAWR stabilised radio transmitter
  • Capsule design with sealed electronics
  • Front cover tamper protection
  • Long life Lithium batteries supplied
  • Low battery warning signal
  • Hourly Supervision radio signals
  • Includes wall mounting bracket
  • Optional ceiling bracket available (106-169)

Pack includes:

  • PIR
  • 2 x CR123A batteries
  • Manual
  • Wall Mounting Bracket

Specs:

DIMENSIONS112(h) x 72(w) x 48(d) mm
MOUNTING HEIGHT2.1m – 2.4m
COVERAGEUp to 15m x 15m @ 90°
DETECTOR ZONES20 dual element zones
PULSE COUNTSelectable 1–2 or 3–4
RANGESelectable High/Low. 15m max./12m max.
SENSORDual element pyroelectric
ALARM INDICATIONBlue alarm LED
NIGHT-LIGHTWhite LED with adjustable threshold, Dark/Dim Light
ALARM PERIOD5 seconds
OPERATING VOLTAGE3V DC
BATTERY2 x CR123A Lithium
QUIESCENT CURRENT       < 14µA
RADIO FREQUENCY304MHz / 868MHz depending on region
TRANSMIT POWER100µW





Additional information

Weight0.1790 kg
