LUX HARDWIRED QUAD PIR NESS

$ 62.00 inc GST

Ness LUX PIR is more than your stock standard Motion Detector. 15x15m detection coverage Look-down creep zone Selectable Standard and Pet Aware Modes White LED motion activated night-light

3 in stock (can be backordered)

Categories: , , SKU: 01303540

Description

LUX HARDWIRED QUAD PIR NESS
WITH NIGHTLIGHT PET AWARE DUAL

NESS 106-173

{tab Overview}

106-173 LUX HARDWIRED QUAD PIR WITH NIGHTLIGHT – NESS

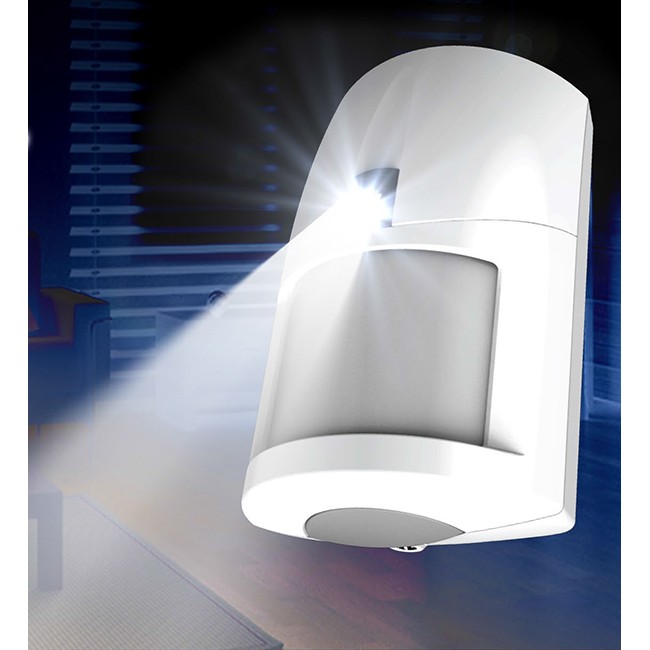

Ness LUX PIR is more than your stock standard MotionDetector. It is a unique detector with a white LED night-light especially designed for connecting to most hardwired alarm control panels. LUX shares all the features and benefits of the Ness PIR range including 15m x 15m detection coverage, look-down creep zone, high RF immunity, white light immunity, adjustable range, adjustable pulse count, Selectable Standard and Pet Aware Modes (in the one standard detector) and Home Automation with fast response output, to name just a few standard features. Ceiling mounting is also available with the addition of a100-243 Forsafety and convenience, LUX’s night-light function provides a motion-activated cone of light to help you find your way at night. The night-light remains lit as long as it detects motion and stays on for an extra 10 seconds after motion hasstopped.

Features:

  • Quad element pyro sensor
  • 15m x 15m wide angle coverage
  • Look down ‘Creep Zone’
  • Selectable Standard and Pet Aware modes
  • Adjustable sensor mask for No Creep and Pet modes
  • Supports Home Automation with fast response output
  • White LED motion activated night-light
  • Adjustable Digital Pulse Count
  • Adjustable Digital Range
  • High R.F. and E.S.D. immunity
  • High white light immunity
  • High quality patented Fresnel lens
  • Capsule design with sealed electronics
  • Front cover tamper protection
  • Totally silent solid state relay with high immunity tomagnetic fields
  • Optional mounting bracket available

{tab Specifications}

DIMENSIONS112(h) x 72(w) x 48(d) mm
MOUNTING HEIGHT2.1m – 2.3m
COVERAGEUp to 15m x 15m @ 90°
DETECTOR ZONES20 dual elementzones
PULSE COUNTSelectable 1–2 or 3–4
RANGESelectable High/Low. 15m max./12m max.
SENSORDual element pyroelectric
ALARM INDICATIONBlue alarm LED
NIGHT-LIGHTWhite LED with adjustable threshold, Dark/Dim Light
ALARM PERIOD2 seconds
OPERATING VOLTAGE10-15V DC
CURRENT DRAW10Ma
COMPATIBILITYAll Hardwired control panels

{/tabs}



Additional information

Weight0.1310 kg
