Description

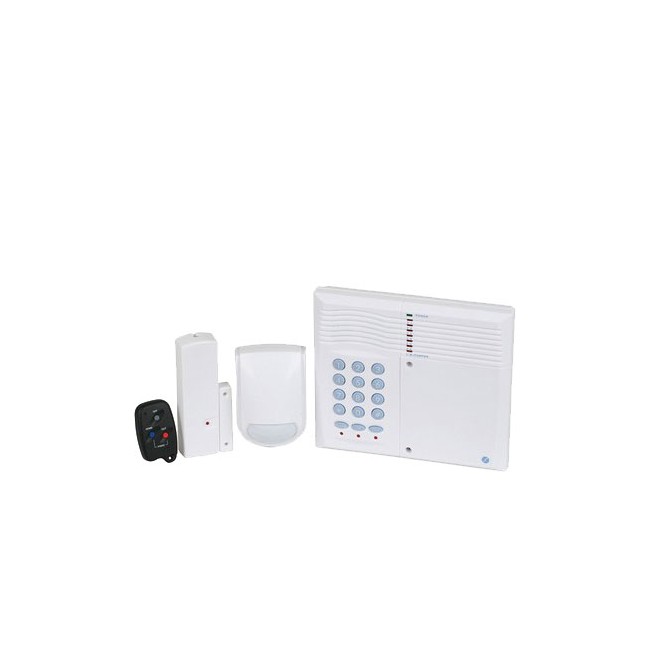

6 ZONE WIRELESS ALARM KIT
LS3800
WAK6
Six Zone Wireless Security System
This 6 zone alarm system is bases on wireless radio technology to give exceptional levels of protection and reliability. It has the ability to control up to 6 zones and 12 wireless detectors for indoor use.
Features
- Detector Learning System –
- Controls up to 12 detectors
- States of operation: At Home, Off & Out.
- Each detector contains a tamper detection device
Specifications
| Control Unit | |
| Type | Microprocessor based wireless / wire hybrid control unit |
| Houseing | ABS |
| Zones | 6 Alarm Zones (every zone can control up to 2 wireless detectors) |
| Entry / exit Delay | 30 seconds(default, programmable) |
| Siren Duration | 3 minutes (default, programmable) |
| Radio System | 433MHz with jamming detection |
| Siren Duration | 12V DC |
| Power Supply | 15V 500mA 50 Hz AC/AC adaptor mains and 12V DC backup battery (8 x 1.5V “AA” alkaline batteries) (battreries not included) |
| Power Consumption | 0.6W (Standby), 4.2W (alarm) |
| Dimension | Approx. 185mm x 160mm x 30mm |
| Wireless Movement Detector / PIR | |
| Type | Dual Pyroelectric element with hemispherical lens |
| Housing | ABS |
| LED | On / Off selectable |
| Coverage Range | 110 |
| Mounting Height | 2-2.5m |
| Detection Range | Up to 12 meters |
| Power Supply | 3V DC (2 x 1.5V “AA” alkaline batteries) (Batteries not included) |
| Wireless Door / Window Contact Dectector | |
| Type | Magnetically activated switch with option for external wired contracts |
| Housing | ABS |
| LED | Transmittion Indication |
| Power Supply 3VDC | 3V DC (2 x 1.5V “AA” alkaline batteries) (Batteries not included) |
| Wireless Remote Control | |
| Functions | Full Arm, Part Arm, Disarm and Panic |
| Housing | ABS |
| LED | Transmittion Indication |
| Power Supply 3VDC | 12V DC (1 x 27 A alkaline batteries) |
