WIRELESS PIRCAM DETECTOR

$ 185.00 inc GST

PIRCAM is a fully supervised two-way wireless detector with built-in high quality camera Detection range: 12m / 85.9° Up to 30KG pet immunity SEC (Smart Environmental Control) Fully remote configurable through App

5 in stock (can be backordered)

Categories: , , SKU: 01302720

Description

WIRELESS PIRCAM DETECTOR
DS-PDPC12PF-EG2-WB AX PRO

HIKVISION 114-260

{tab Overview}

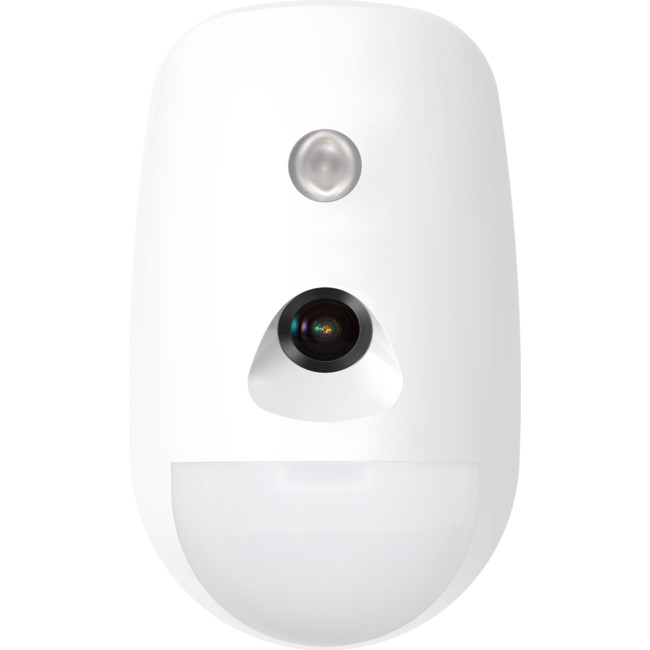

DS-PDPC12PF-EG2-WB WIRELESS PIRCAM DETECTOR

PIRCAM is a fully supervised two-way wireless detector with built-in high quality camera which can providean ideal solution for video verification via motion picturestransmitted to an ARC or to personal phones via APPs.
Protect your premises day and night by viewing real-time images for fast and accurate response to real alarm events.

Features:

  • Detection range: 12m / 85.9°
  • Up to 30KG pet immunity
  • SEC (Smart Environmental Control) – Advanced digital signal processing and 3D optics
  • 24/7 colorful imaging
  • Large integrated memory buffer for image storage
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected

{tab Specs}

Model DS-PDPC12PF-EG2-WB
Detection PerformanceDetection Method Passive Infrared,Video Verification
Sensor Model SFG321-711
Detection Range 12m
Detection Angle 85.9°
Detection Zones 52
Detectable Speed 0.3 to 2m/s
Sensitivity Auto,High,Pet
Pet Immunity 30Kg
White Light Filter 6500lux
Digital Temperature Compensation Support
Creep Zone ProtectionSupport
FeatureDigital Processing Support
Sealed Optics Support
Tamper Protection Front,Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
VideoImage Sensor ASX340
Field Angle 88°(H), 68°(V)
Image Type JPEG
Resolusion 640*480,320*240,160*120
Frame Rate 2
Fill Light White Light
Fill Range 12m
Day/Night Switch Color
InterfacePower Switch Power Up Enrolling
LED Indicator Blue(Alarm)
TransmissionTransmission Technology CAM-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 433MHz
Transmission SecurityAES-128 Encryption
Transmission Range(Free Space) 800m
Enrolling Method Power up,Remote ID,QRCode
Electrical CharacteristicsStandard Battery Life6 years in work status (being triggered and
completely uploading captures twice every week)
Power Supply Battery Powered
Battery Type CR123A × 3
Typical Voltage 3V
GeneralOperation Temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimension(WxHxD) 72.2mm × 120.5mm × 56.7mm




{/tabs}

Additional information

Weight0.2510 kg
