Description
WIRELESS PIR DETECTOR
DS-PDP15P-EG2-WB AX PRO
HIKVISION 114-256
{tab Overview}

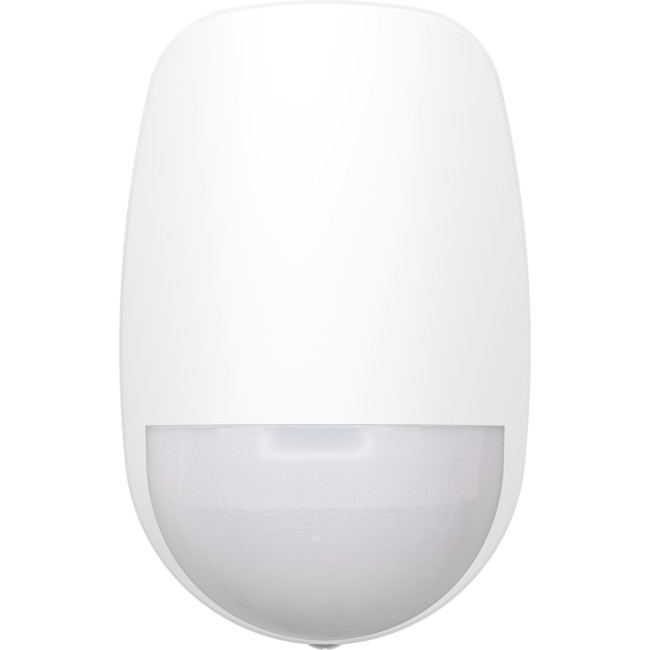

DS-PDP15P-EG2-WB WIRELESS PIR DETECTOR
DS-PDP15P-EG2-WB is a fully supervised two-way wireless detector featuring motion detectio, tamper protection low battery and supervision. It can operate for up to 5 years from an in-built battery, and monitors the area within 15 m radius, ignores animals while recognizing human from the first step.
Features:
- Detection Range: 15m / 85.9°
- Up to 30KG pet immunity
- SEC (Smart Environmental Control) – Advanced digital signal processing and 3D optics
- Fully remote configurable through App
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
- Frequency hopping against jamming for reliable transmission
{tab Specs}
| Detection Performance | |
| Detection Method | Passive Infrared |
| Sensor Model | SFG321-711 |
| Detection Range | 15m |
| Detection Angle | 85.9° |
| Detection Zones | 52 |
| Detectable Speed | 0.3 to 2m/s |
| Sensitivity | Auto,High,Pet |
| Pet Immunity | 30Kg |
| White Light Filter | 6500lux |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front,Rear |
| Environment Temperature Indicator | Support |
| Signal StrengthIndicator | Support |
| Interface | |
| Power Switch | Power Up Enrolling |
| LED Indicator | Blue(Alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 433MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1.2Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up,RemoteID,QR Code |
| Electrical Characteristics | |
| Standard Battery Life | 5 years in workstatus (being triggered 20 times per day) |
| Power Supply | Battery Powered |
| Battery Type | CR123A × 1 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -10 °C to 55 °C(14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C(-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 65.5mm × 103mm × 48.5mm |
| Weight | 128g |
| Mounting Height | 1.8 to 2.4m |
| Mounting Method | Wall |
| Application Scenario | Indoor |
| Bracket | Optional Wall & Ceiling Accessor |
