SECURITY PRESSURE MAT / PAD

$ 69.00 inc GST

Floor pressure mats are designed to detect a person treading on them. High impact PVC material Trapped air cushion Size: 740x550mm

32 in stock (can be backordered)

Categories: , , SKU: 01308066

Description

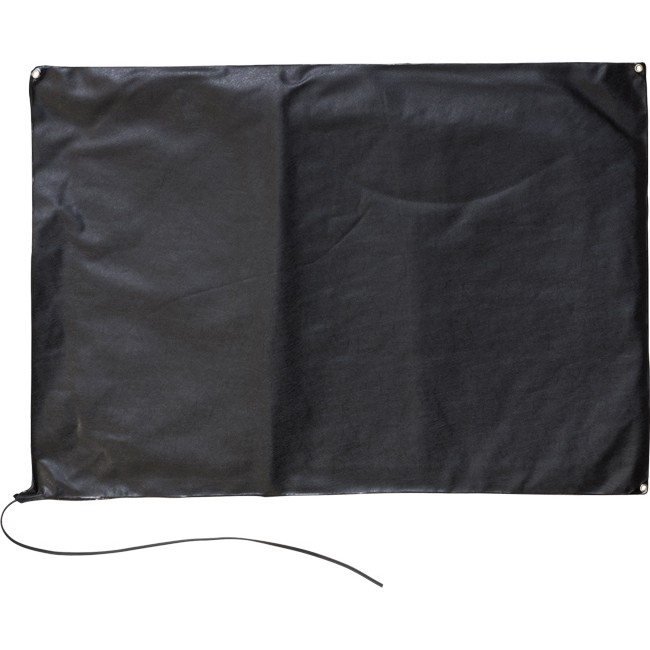

SECURITY PRESSURE MAT / PAD

PM100

Floor pressure mats are designed to detect a person treadingon them.
An ideal security solution, the PM100 offers a low cost covert method of detecting a person.

Apart from security related uses, the PM100 can be used to trigger other devices.
(ie. You could have the PM100 trigger a multimedia presentation when you tread on it)

  • High impact PVC material
  • Trapped air cushion
  • Size: 740 x 550mm
  • Minimum weight to trigger the pressure sensor is around 16kg-25kg.



Specifications:

  • Contact R. : 20ohm Max
  • Insulation R. : DC 500V 100Mohm Min.
  • Dielectric strength: AC 400V 1 minute
  • Voltage: DC100V
  • Current: DC 0.5A
  • Operating life: 30,000 Cycles
  • Thickness: 1mm

Please note, this item requires other devices such as an alarm panel to operate. It is not a stand alone alarm, just a device to trigger an alarm.



Images

Additional information

Weight0.4260 kg
