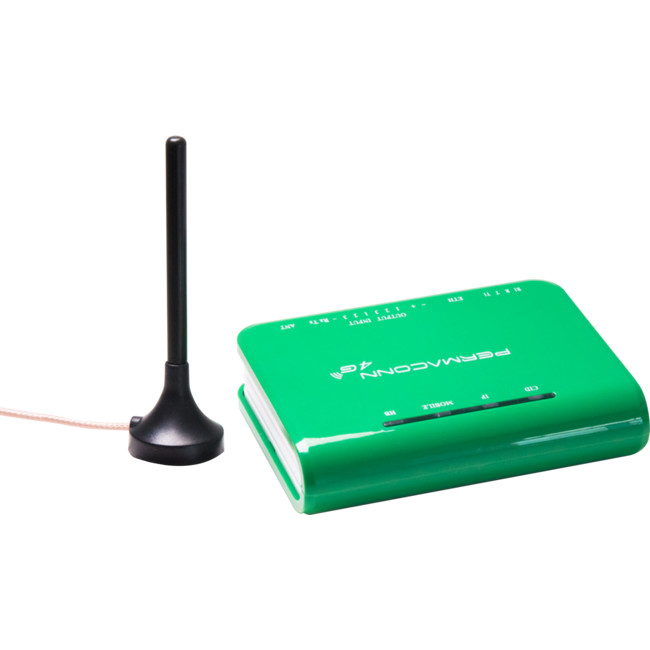

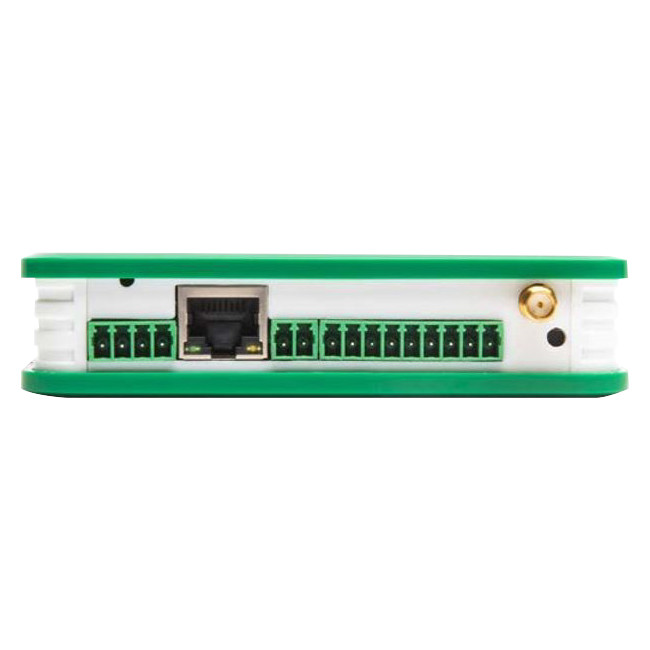

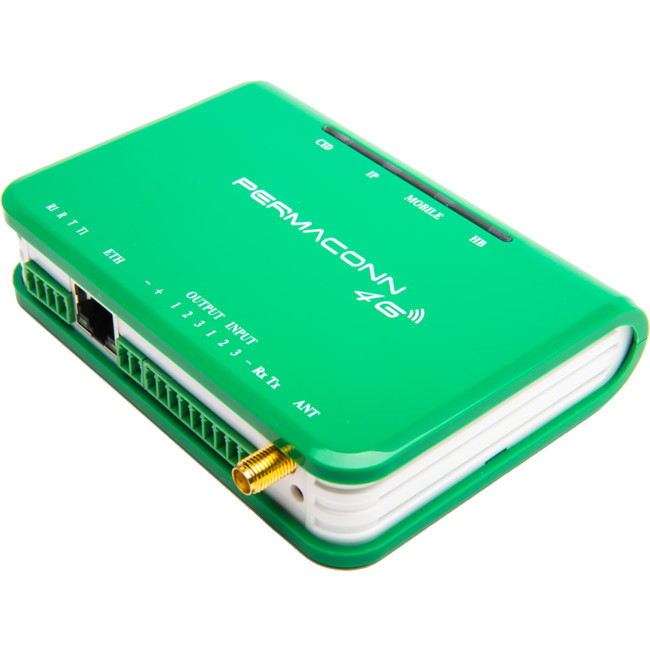

PM45-4G 4G GPRS & IP DIALLER

$ 299.00 inc GST

PM45-4G is a versatile alarm communicator that reports on 4G, GPRS and IP to the Central Station. Plug & Play solution Outputs can be configured to arm/disarm alarm system, control gates and lights Dual SIM + IP alarm communicator AS/NZ2201.5:2008 compliance

Available on back-order

Categories: , , SKU: 01306008

Description

PM45-4G 4G GPRS & IP DIALLER
PERMACONN

PERMACONN 106-396B

{tab Overview}

106-396B PM45-4G 4G GPRS & IP DIALLER – PERMACONN

The Permaconn solution provides a constant securelink between the supervised premises and the Central Station.

The PM45-4G is a versatile alarm communicator that reports on 4G, GPRS and IP to the Central Station.

This unit can interface with a range of alarm panels using Contact ID. Primary alarm path is IP, followed by 4G/GPRS in the event of a wired ethernet failure. If no IP connection exists the communicators will report on GPRS or 4G/3G only.

{tab Features}

  • Remote alarm panel Upload/Download available using GPRS/3G/IP
  • Dual SIM + IP alarm communicator,
  • Plug & Play solution,
  • Interfaces with any Contact ID alarm panel,
  • 1 input + 1 output, function control using Atlas and/or Pocket Secure,
  • Low cost hardware solution for NBN or Naked DSL services,
  • PM45-4G communicates on 4G & GPRS networks
  • Small size – Fits inside alarm panel enclosure and suitable for ATM & M2M applications
  • Secure VPN within Optus & Telstra networks – Dedicated for Permaconn events only
  • AES128 encryption for alarm data – Secure transmissions over the public internet
  • High speed RS232 Interface – Future development
  • PM45-3G acquires an IP address automatically using thecustomers DHCP service. No IT headache
  • Various diagnostic LEDs – Easy installation
  • Activate, commission and diagnose using Atlas – Seamless installation process
  • Three (3) dedicated paths of communication – Uptime inexcess of 99.9%
  • Internal watchdog reset function – No unnecessary service call-outs
  • Monitors & reports dialler interface lead status -Panel dialler to Permaconn interface secure
  • AS/NZ2201.5:2008 compliance
  • Outputs can be configured to arm/disarm alarm system, control gates and lights. ‘Pocket Secure’ smartphone app controls these functions.

{tab Specifications}

Housing Material

ABS Plastic – white

Dimensions

110mm (h) x 25mm (d) x 80mm (w)

Weight

0.12Kg

Operating Environment

0°- 50°C @15% to 85% humidity (non-condensing)

Antenna

Triple band 3G & Triple band 3G

Modem

Quectel EC21

Power

8 – 15V DC Terminal (must be powered from approved supply)

Power Consumption

Standby: 0.08A @13.8V DC
Transmitting: 0.19A @13.8V DC

Communication Protocol

Ethernet (10/100BASE-T)

IP Address Allocation

DHCP or Static IP

Serial Port

High Speed RS232 interface

Auxiliary Input

3 x 24Hr input – state change detected every second. EOL 3.3K

Auxiliary Output

3 x Open Collector output @ 50mA (max)
Function control using Atlas web portal and/or Pocket Secure

Static IP Network Configuration

Ethernet interface using ‘IpSetup’ program
Atlas web portal using GPRS/3G connection

Data Security

AES Encryption

Supported Modulation

BELL-103, ITU-V21/V22/V22B

Approvals

EN 55022:2006/A1:2007, AS/CA S042.1-2011, AS/CA S042.4-2011 AS/NZS 60950.1-2011 , AES2201.5:2008, EN 62311:2008, EN 301489-1 EN 301 489-24, EN 301 908-1, EN60950-1



{/tabs}





Additional information

Weight0.2910 kg
