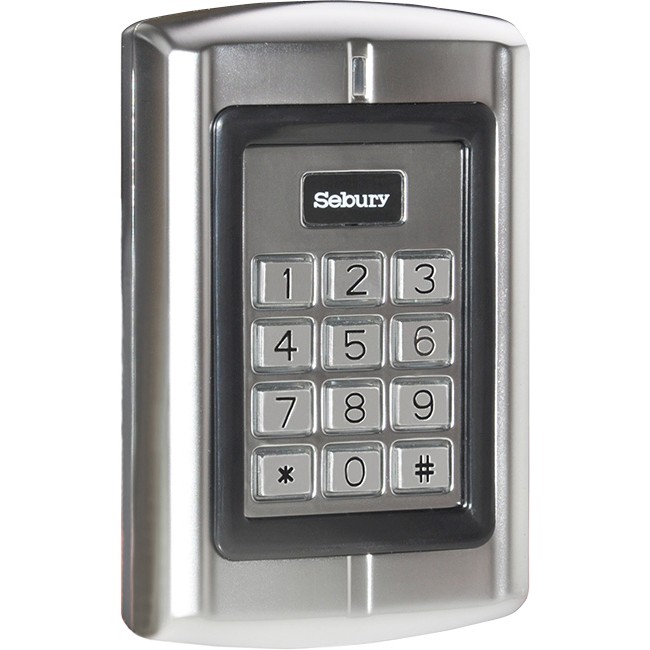

DIGITAL KEYPAD WITH RFID

$ 129.00 inc GST

2000 users Backlit keypad LED indicator (Green/Yellow/Red) Wiegand 26 input for the connection of an external reader Adjustable door output time, alarm time and door open time Built in light dependent resistor for anti-tampering Built in buzzer

5 in stock (can be backordered)

Description

DIGITAL KEYPAD WITH RFID
ACCESS CONTROL

LA5353

{tab Features}

Digital Keypad with RFID Access Control

A single door multifunction standalone access controller or a Wiegand output keypad/card reader suitable for an area requiring stricter access control such as a laboratory, warehouse, bank, or prison. The unit is suitable for mounting indoor or outdoor in harsh environments. It’s housed in a sturdy IP65 vandal proof zinc alloy electroplated case that can mounted to a wall with minimal drilling. Up to 2,000 users are supported in either a card, a 4-8 digit PIN, or a card + PIN option and the inbuilt cardreader supports EM, 125KHz frequency cards. Red/Yellow/GreenLEDs will indicate working status of the device.

Full installation instructions and wiring diagrams featured in manual.

Features:

  • Waterproof
  • 2000 users
  • Backlit keypad
  • LED indicator (Green/Yellow/Red)
  • Wiegand 26 input for the connection of an external reader
  • Adjustable door output time, alarm time and door open time
  • Built in light dependent resistor for anti-tampering
  • Built in buzzer

{tab Specifications}

  • Voltage: 9-18VAC / 12-24VDC
  • Keypad: 12 keys, 3 x 4 digits
  • Card Type: EM 125KHz
  • Card Reading Distance: 3-6cm
  • Active current: Operating Temperature: -20-60 degrees celcius
  • Adjustable Door Relay time: 99 seconds
  • Adjustable Alarm Time: 0-3 minutes
  • Weigand Interface: Wiegand 26 bit
  • Wiring Connection: Electric Lock, Exit Button, DORL, External Alarm
  • Dimensions: 128(H) x 82(W) x 28(D)mm

{/tabs}

Additional information

Weight0.6410 kg
