STAND ALONE KEYPAD RFID READER

Description

STAND ALONE KEYPAD RFID READER
SLIMLINE

PRESCO KPAC240

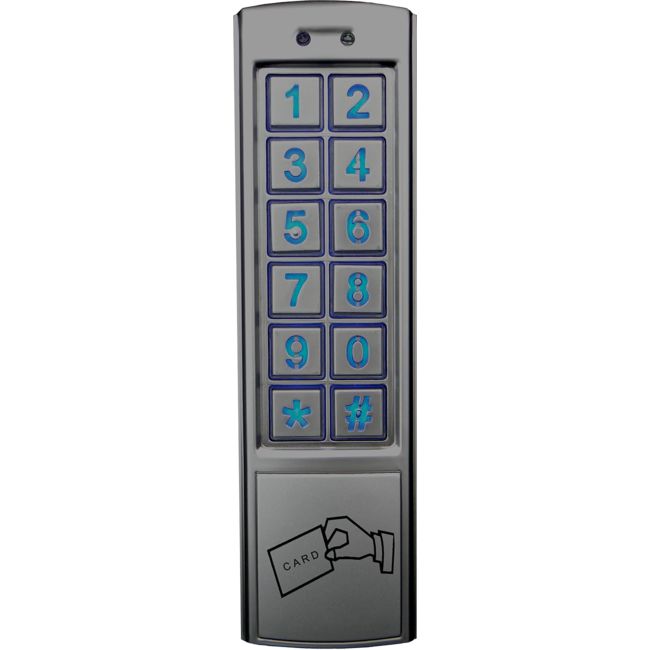

KPCA240 STAND ALONE SLIM DESIGN KEYPAD AND RFID PROXIMITY READER

The KP-AC240 is a dual relay output access controller, that can store up to 1000 proximity card/tags and pin codes for relay one and 10 card/tags and pin numbers for relay two.

The KP-AC240 encompasses all the features required to control 2 doors from a single keypad, including Egress functions

Features

• Stand alone key pad/Proximity Reader
• Fully integrated Access Controller with inbuilt RFID Reader
• Aluminium alloy – Vandal & Weather Resistant design
• Surface mount , Backlit unit
• Audible key responses
• 12/24VDC IP66 Rated
• Over 1010 User Entries (Pin Codes or Prox Cards)
• Supports EM Standard Prox cards
• Access modes:
  • Proximity Card only
  • Pin or Proximity Card
  • Pin and Proximity Card

• 2 Door Access Control with individual relay outputs
• 2 EGRESS Door inputs
• Dimensions 45x145x25mm

Specifications

• 12 Digits Backlight Key pad
• RFID Reader: EM125 KHz
• Operating Voltage: 12-24 Volts AC or DC
  • Standby Current: 30mA
  • Working Current: 160mA
• Operational Temperature range: 30°C – 70°C
• Cable Length: 1 meter, 14 wires
• Waterproof, Dustproof, IP66 Rating
• Zone 1: Up to 1000 Codes or Cards or Combined
• Zone 2: Up to 10 Codes or Cards or combined
• 2 Relay outputs (NO/COM/NC)
• 2 EGRESS inputs
• Door release time 0-99 seconds
• Dimensions: 45(W) x 145(H) x 25(D) (mm)
