INDOOR KEYPAD & PROX READER

$ 122.00 inc GST

Presco PSC16 Proximity Reader is an advanced, self contained RFID (Radio Frequency IDentification) contactless reader. Outputs Presco and Wiegand format data Compatible with Presco PAC access controllers and all other Presco decoders Designed and manufactured in Australia 3 year manufacturer’s warranty

2 in stock (can be backordered)

Description

INDOOR KEYPAD & PROX READER

PRESCO PSC16

{tab Overview}

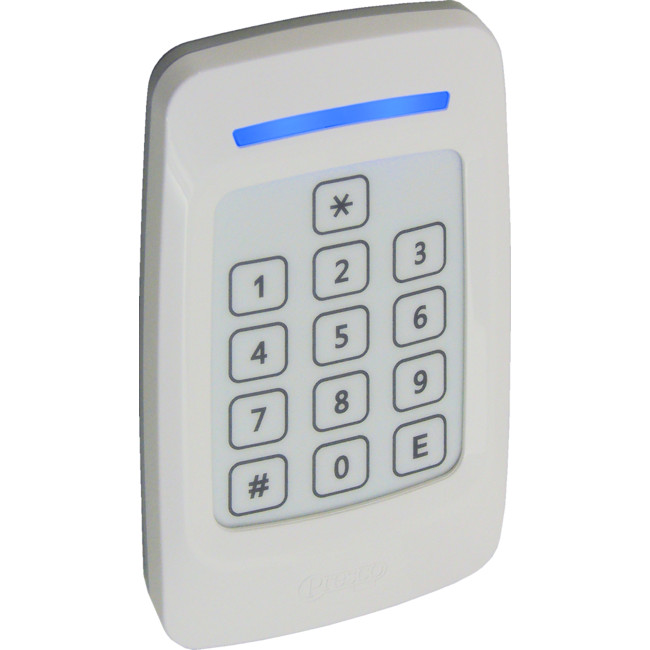

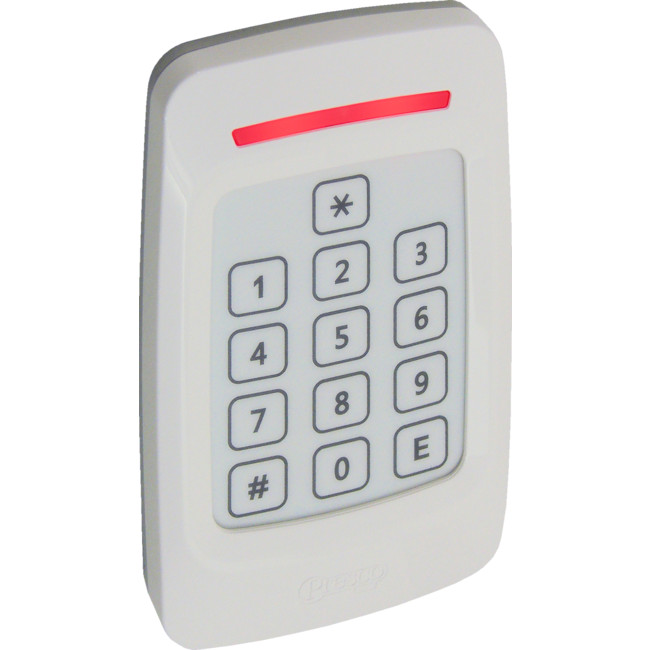

PSC16 INDOOR KEYPAD & PROX READER – PRESCO

The Presco PSC16 Proximity Reader is an advanced,self contained RFID (Radio Frequency IDentification) contactless reader. It is capable of interfacing to either aWiegand input control panel or to Nidac’s range of Presco PAC decoders.

Features:

  • Outputs Presco and Wiegand format data
  • Auto senses output type required via white wire connection
  • Read range of up to 20cm
  • Compatible with Presco PAC access controllers and allother Presco decoders, the entire syste uses low cost non-shielded cable and keypads can be up to 1 kilometer fromthe door controller (power supply and cable dependent)
  • Compatible with industry standard 26bit Wiegand systems, fully configurable for other systems with up to 64 bits of data from the keypad and custom prox. cards and tagsare available for other wiegand formats
  • Over 19,000,000 possible codes when used with Presco PAC
  • Audible and visual confirmation of all actions
  • Designed and manufactured in Australia
  • 3 year manufacturer’s warranty

{tab Specs}

Operating Voltage
8 – 15 Volts D.C.

Operating Current
150 mA. max

Operating Temperature
0°C to 50°C

Read Range
Up to 20cm (8”)

Frequency
125 ± 5 kHz

Wiegand Output
Pulse width: 50µs
Pulse separation: 2ms

Dimensions
126mm x 80mm x 17.5mm

Weight
145g



{/tabs}

Additional information

Weight0.1610 kg
