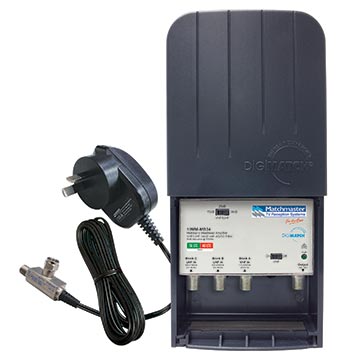

Multiband Masthead Amplifier VHF/UHF 34dB with 4G/5G Filter and Power Supply

$ 99.00 inc GST

Independent Block A, B & C inputs can be used with VHF or UHF antenna‘s or a combination of both and includes a VHF on/off switch.. 4G and 5G LTE filter built-in from 610MHz for greater filtering at 700MHz. Filter attenuation @ 700MHz: >50dB at maximum gain for UHF of 34dB. Gain adjustment switch selectable between 15, 25 and 34dB

Description

Independent Block A, B & C inputs can be used with VHF or UHF antenna‘s or a combination of both and includes a VHF on/off switch.

4G and 5G LTE filter built-in from 610MHz for greater filtering at 700MHz. Filter attenuation @ 700MHz: >50dB at maximum gain for UHF of 34dB

Gain adjustment switch selectable between 15, 25 and 34dB

Heavy-duty UV stable outdoor weatherproof casing

Includes 14V DC power supply and cable ties for mounting

VHF input return loss is >13dB and the UHF return loss is >11dB with a noise figure of <2.9dB for UHF

Specifications

Amplifier
1 VHF in Block A170-240 MHz (CH 6-13)
1 UHF in Block B526-568 MHz (CH 28-33)
1 UHF in Block C568-610 MHz (CH 34-39)
VHF/UHF gain switchable15/25/34 dB
VHF In with ON-OFF switch
Output 1Power DC 14V
Return loss>12dB typical
Output level>102dBuV
Noise figure<=5 dB
Impedance75 Ohm
Power consumption90 mA
All “F” female connectors
Alloy diecast housing dimension93 x 66 x 21.5mm
Waterproof ABS plastic housing dimensions123 x 108 x 50mm
Power supply
Power adaptor190-240V AC/50-60 Hz
OutputDC 14V/300 mA
Antenna port“F” male
TV port“F” female
Nickel plated alloy housing
DC cable length1.8m

Brochure

10mm-mb34p_brochure

Additional information

Weight2 kg
