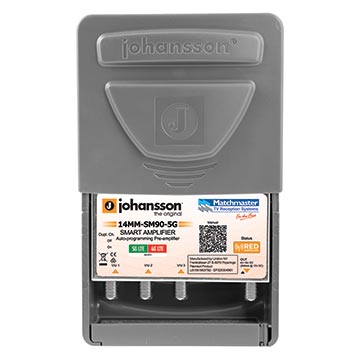

Smart Masthead Amplifier with Auto Programming, 3 Inputs and 90dBμV AGC Controlled Output

$ 366.80 inc GST

Smart Masthead Amplifier with fully automatic channel scan and process function upon double power cycle start-up. Scans all channels, amplifies the weak signals while keeping the strong channels and outputting an AGC controlled 90dBμV. SAW filters for LTE (4G/5G) protection on all inputs

Categories: , SKU: 14MM-SM90-5G

Description

Smart Masthead Amplifier with fully automatic channel scan and process function upon double power cycle start-up

Scans all channels, amplifies the weak signals while keeping the strong channels and outputting an AGC controlled 90dBμV

SAW filters for LTE (4G/5G) protection on all inputs

Processes even the most difficult situations with adjacent channels from multiple antennas

All output channels have an equal and stable output power level of 90dBμV

Wide range power input – 9V to 18VDC – can be used with 14MM-PSF1A plus 14MM-PI62 or the 10MM-PSD14

Additional information

Weight1 kg
