$ 198.25 inc GST

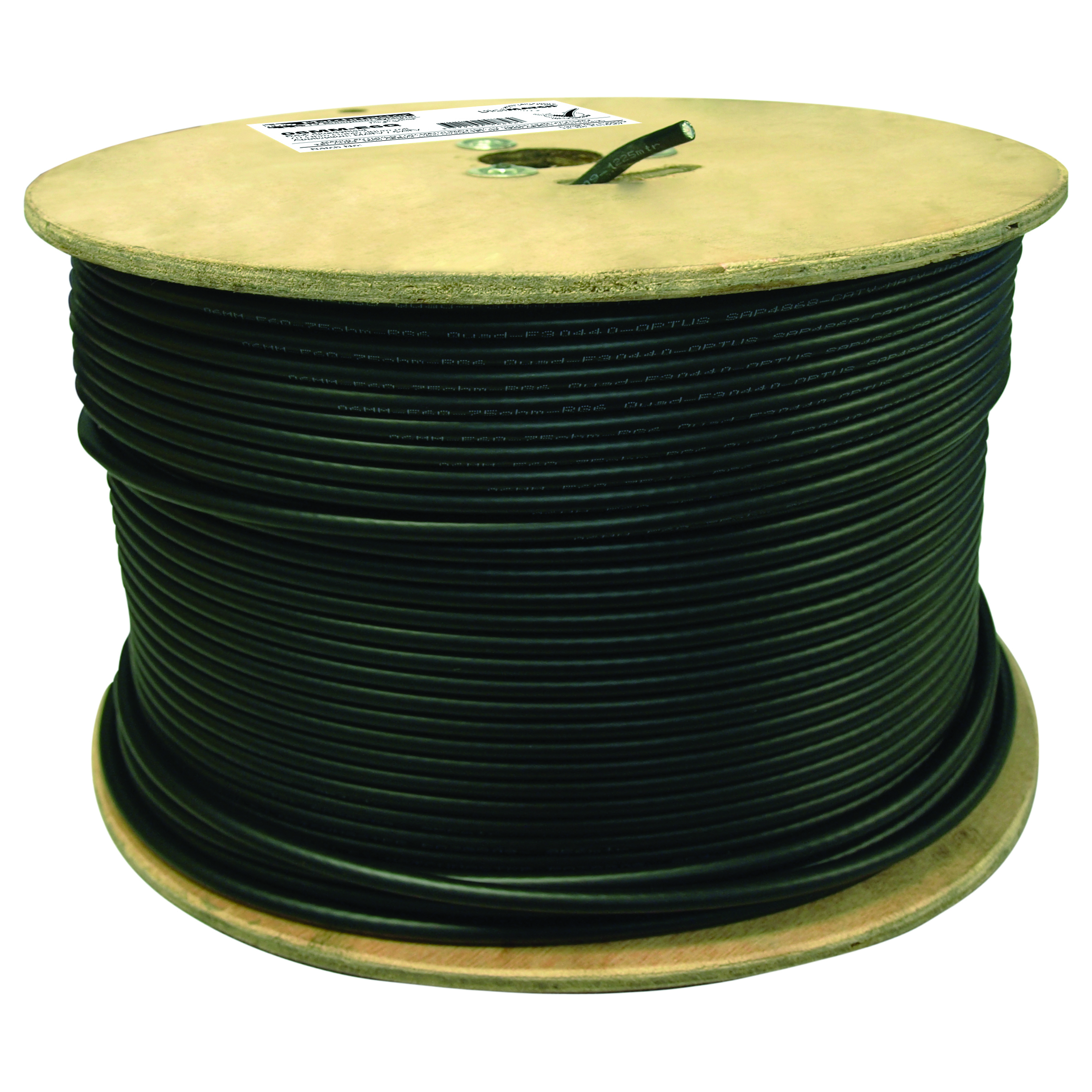

305 m Rg6 Quad shield coax cable quad-core Foxte/optusl approved
608 in stock

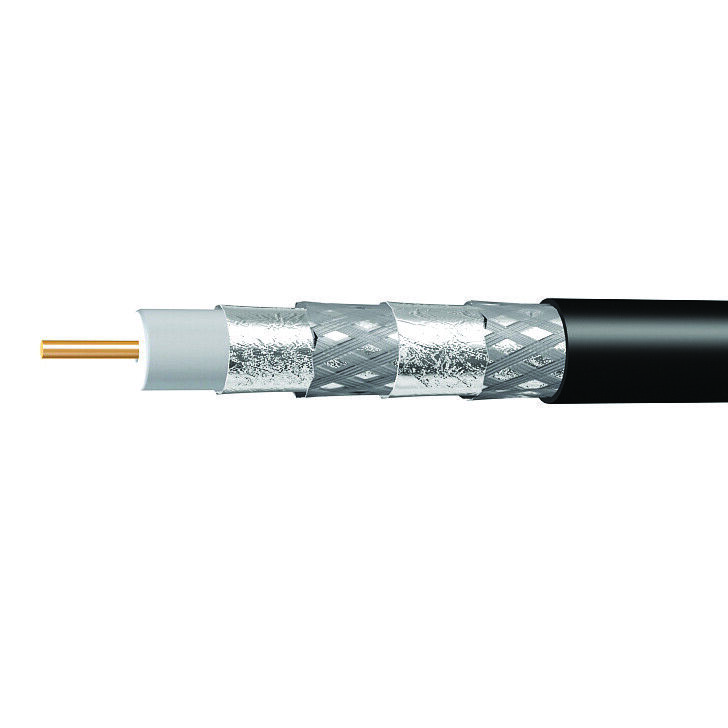

| Construction | ||
|---|---|---|

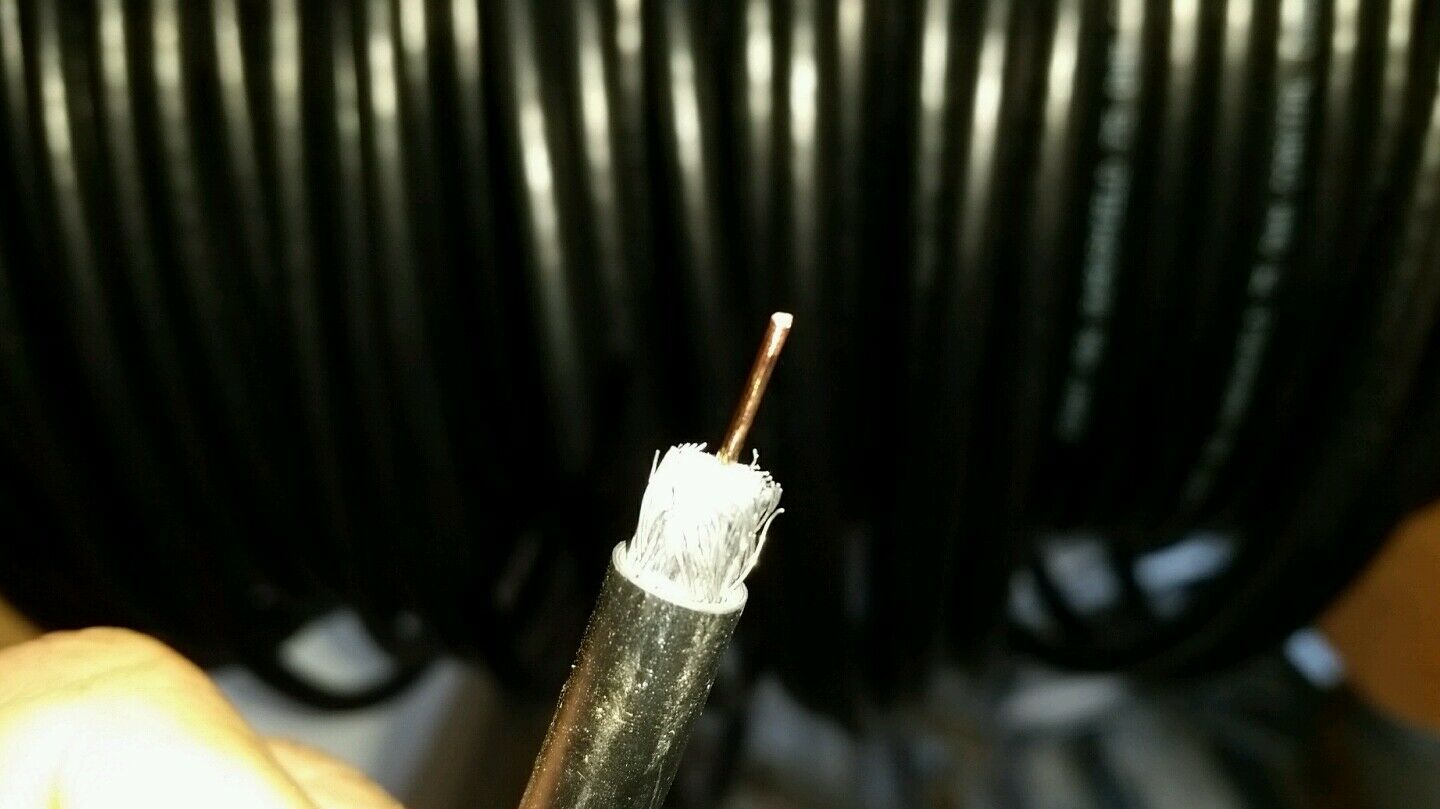

| Inner Conductor | Material | Copper Clad Steel Wire |
| Diameter, mm | 1.02±0.01 | |
| Insulation | Material | Physically Foamed-PE |
| Diameter, mm | 4.57±0.15 | |
| Outer Conductor | 1st shield | Bonded Al/PET/Al Tape 4.78 ±0.13 |
| 2nd shield | Al-Mg Alloy Wire Braid | |
| 3rd shield | Non-bonded Al/PET/Al Tape | |
| 4th shield | Al-Mg Alloy Wire Braid | |
| Jacket | Material | FR PVC or PVC |
| Diameter, mm | 7.54±0.20 | |
| Mechanical Properties | ||
| Bending Radius, mm | Single | 35 |
| Typical | 70 | |
| Pulling Strength, N | 200 | |
| Adhesion Force, N | >20 | |
| Electrical Properties | ||
| Impedance, Ω | 75±3 | |
| DCR of Inner conductor, Ω /km | 102.0 | |
| DCR of outer conductor, Ω /km | 19.1 | |
| Capacitance, pF/m | 54 | |
| Propagation Velocity, % | 82 | |
| DC Breakdown Voltage, kV | 5.0 | |
| Insulation Resistance, MΩ•km | >1×104 | |
| Screening Attenuation, dB | >105@5~1000MHz | |
| >95@1000~2000MHz | ||
| >85@2000~3000MHz | ||
| Attenuation | ||
| Frequency MHz | Max. attenuation @20℃,dB/100m | |
| 5MHz | 1.90 | |
| 55MHz | 5.25 | |
| 211MHz | 10.00 | |
| 250MHz | 10.82 | |
| 270MHz | 11.04 | |
| 300MHz | 11.64 | |
| 330MHz | 12.26 | |
| 350MHz | 12.63 | |
| 400MHz | 13.61 | |
| 450MHz | 14.43 | |
| 500MHz | 15.29 | |
| 550MHz | 16.08 | |
| 600MHz | 16.73 | |
| 750MHz | 18.54 | |
| 870MHz | 20.04 | |
| 1000MHz | 21.49 | |
| 1300MHz | 24.49 | |
| 1450MHz | 25.89 | |
| 1750MHz | 28.67 | |
| 2150MHz | 31.79 | |
| 2600MHz | 35.30 | |
| 2832MHz | 37.74 | |
| 3000MHz | 38.84 | |
| Return Loss, dB | ||
| 5-3000MHz | ≥20 | |
| Standards | ||
| Operation | -40~+70°C | |
| UL 1581 UV Resistance 720h | Compliant | |
| 2011/65/EU | Compliant | |
| Weight | 10 kg |
|---|---|
| Dimensions | 45 × 45 × 40 cm |
