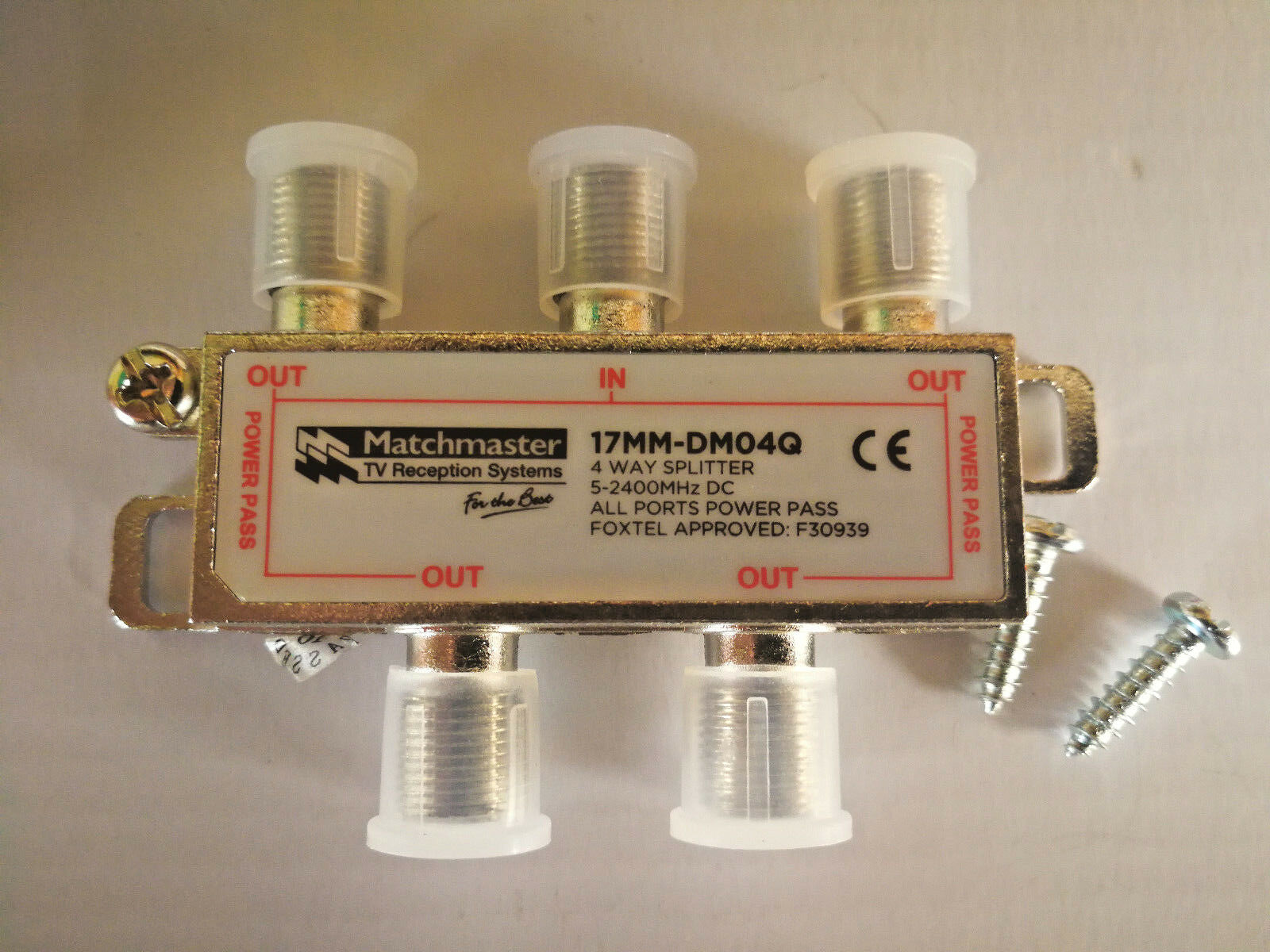

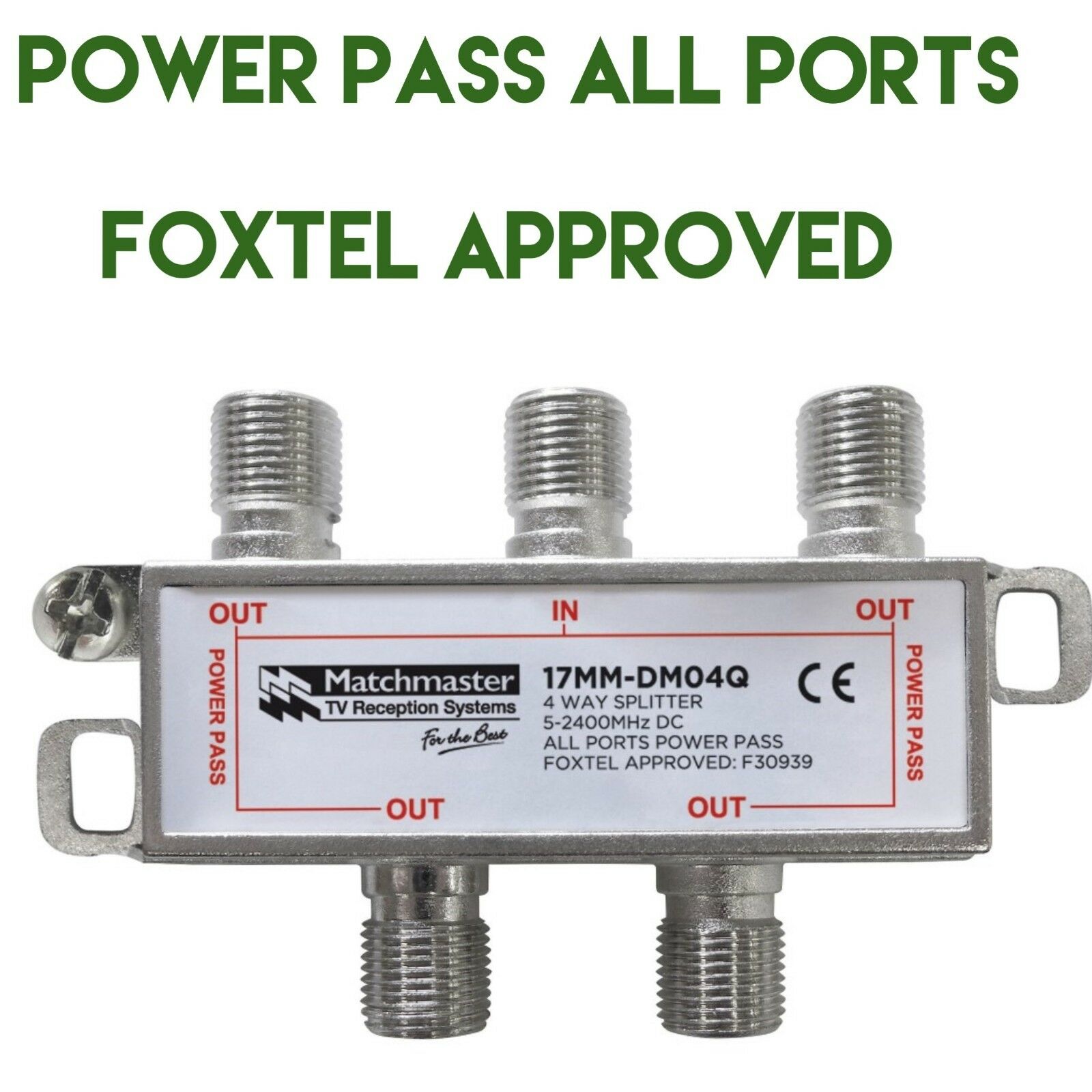

TV Antenna Splitter 4-way

$ 12.99 inc GST

4 way power pass digital tv splitter forget the chepo ones they are long over due for the bin.

Categories: , SKU: 17MM-DM03Q

Description

Tv Antenna 4 Way Splitter ‘F’ Type 5-2400MHz Power Pass All Ports.

  • Foxtel Approved (F30939)
  • Suitable for both Satellite/TDT & FTA
  • DC power pass all ports
  • 10dB extra screening with soldered back
  • Frequency range 5-2400 MHz
  • Also available in 50 pack (17MM-DM04QB)

Specifications

Insertion Loss 5-40MHz 8.5dB
40-470MHz 8.0dB
470-1000MHz 8.0dB
1000-1750MHz 8.0 to 9.0dB
1750-2150MHz 9.0 to 10.0dB
2150-2400MHz 10.0 to 11.5dB
Return Loss 5-40MHz ≥10dB
40-470MHz ≥10dB
470-1000MHz ≥10dB
1000-1750MHz ≥10dB
1750-2150MHz ≥10dB
2150-2400MHz ≥10dB
Isolation 5-40MHz ≥20dB
40-1000MHz ≥23dB
1000-1750MHz ≥23dB
1750-2400MHz ≥23dB
DC Power Passing from all output to input Max. 500mA

Video

Additional information

Weight.3 kg
Dimensions5 × 2.5 × 3 cm
